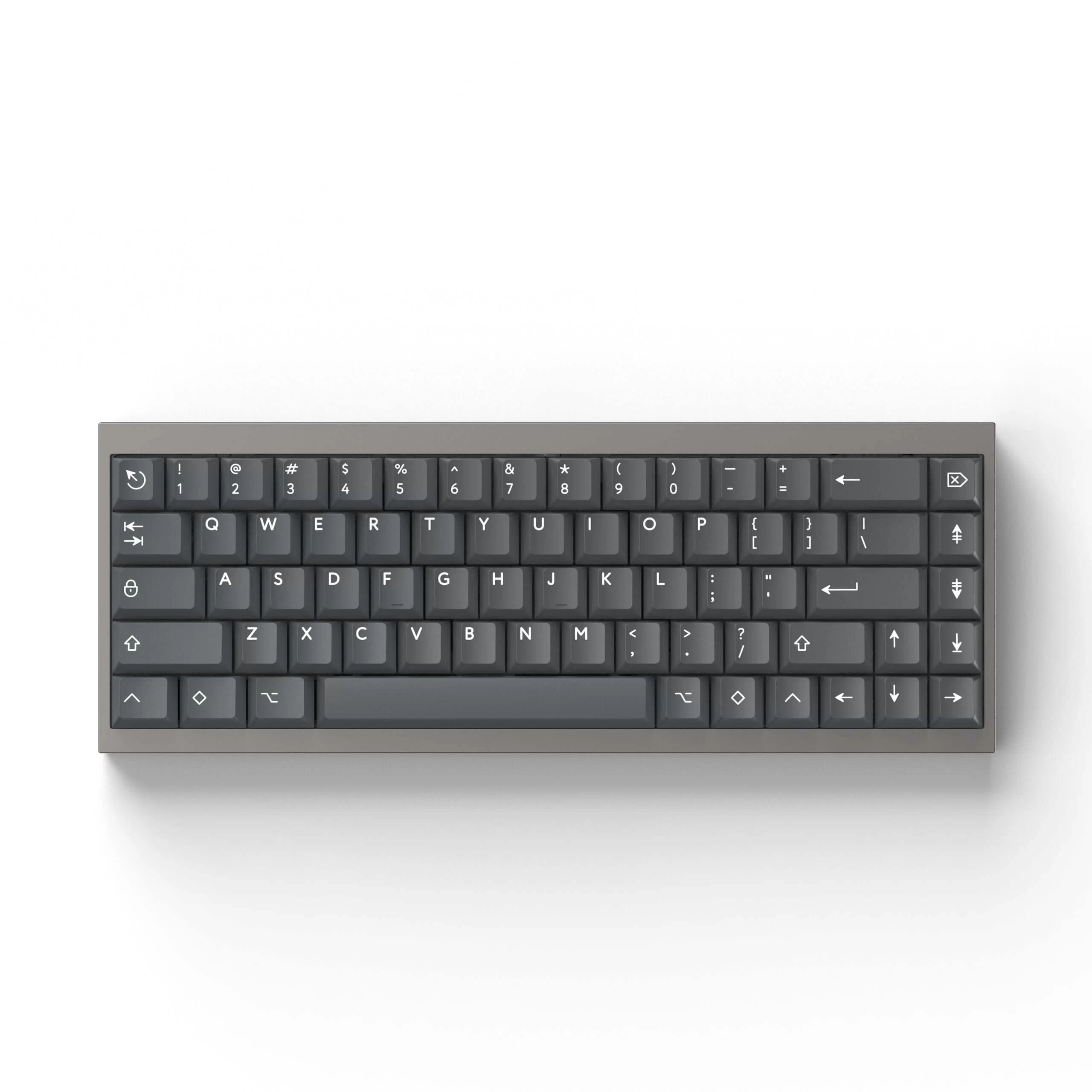

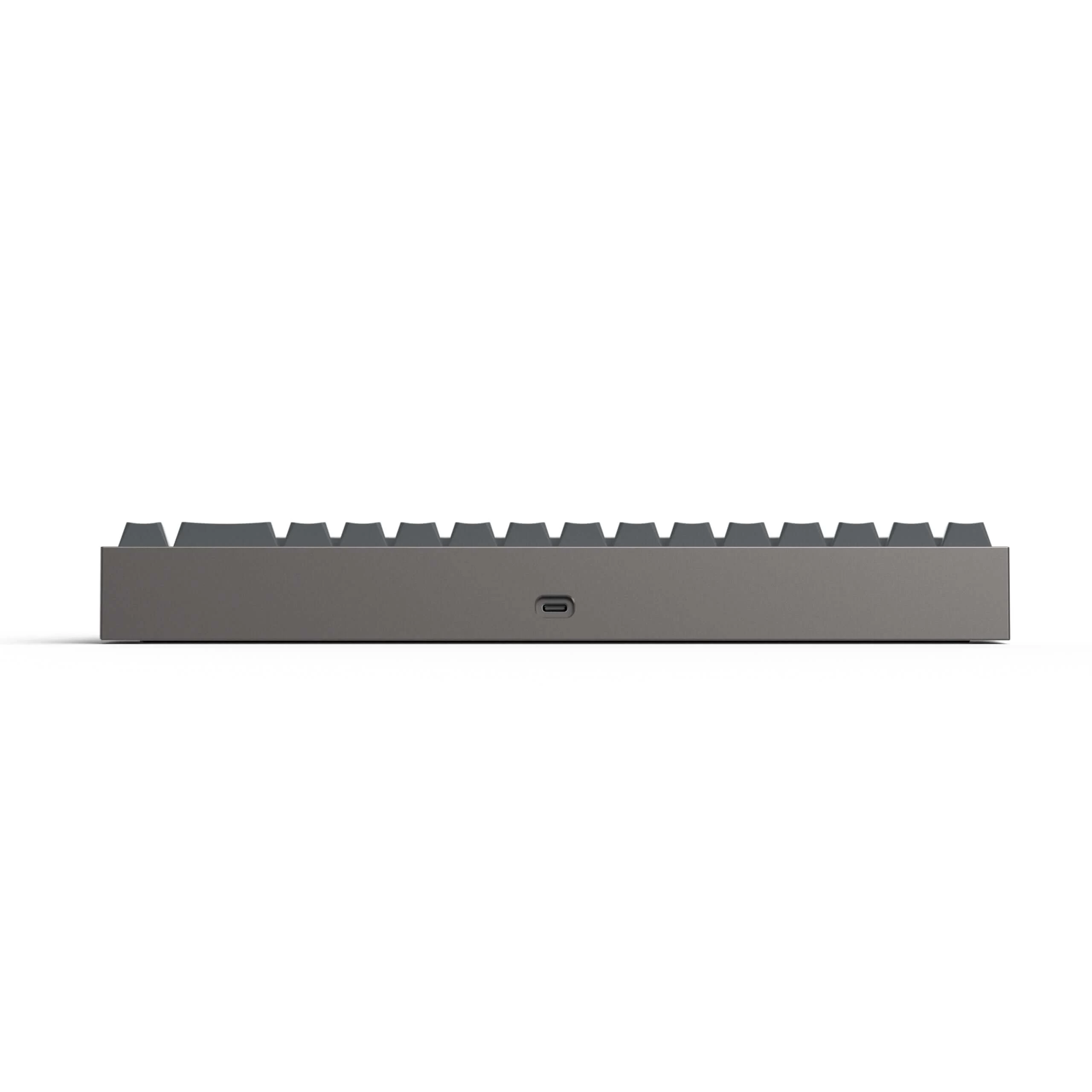

Kit Tofu65 2.0 Ecoat Custom Build Keyboard - E-Coating Color, PC Plate, Hot-swap PCB

Kit Tofu65 2.0 Ecoat Custom Build Keyboard - E-Coating Color, PC Plate, Hot-swap PCB - Ảnh 2

Kit Tofu65 2.0 Ecoat Custom Build Keyboard - E-Coating Color, PC Plate, Hot-swap PCB - Ảnh 3

Kit Tofu65 2.0 Ecoat Custom Build Keyboard - E-Coating Color, PC Plate, Hot-swap PCB - Ảnh 4

Kit Tofu65 2.0 Ecoat Custom Build Keyboard - E-Coating Color, PC Plate, Hot-swap PCB - Ảnh 5

Kit Tofu65 2.0 Ecoat Custom Build Keyboard - E-Coating Color, PC Plate, Hot-swap PCB - Ảnh 6

Kit Tofu65 2.0 Ecoat Custom Build Keyboard – E-Coating Color, PC Plate, Hot-swap PCB

0.0 (0 đánh giá) | Đã bán 5

Cho phép đặt trước

4.950.000 ₫

~~5.050.000 ₫~~ -2%

Kit bao gồm:
-> Aluminum top and bottom case x1
-> Brass weight x1
-> Plate x1
-> Hot-swappable PCB x1
-> USB-C daughterboard x1
-> Silicone bowl x1 set
-> Silicone socks x1 set
-> Bottom poron x1
-> Plate poron x1
-> EVA switch pad x1
-> Cherry screw-in stabilizers x1 set
-> Screws and rubber feet x1 set

Cam kết hàng chính hãng

100% hàng chính hãng

Đổi trả dễ dàng

Trong 7 ngày

Bảo hành chính hãng

Giao hàng nhanh

Toàn quốc

Features

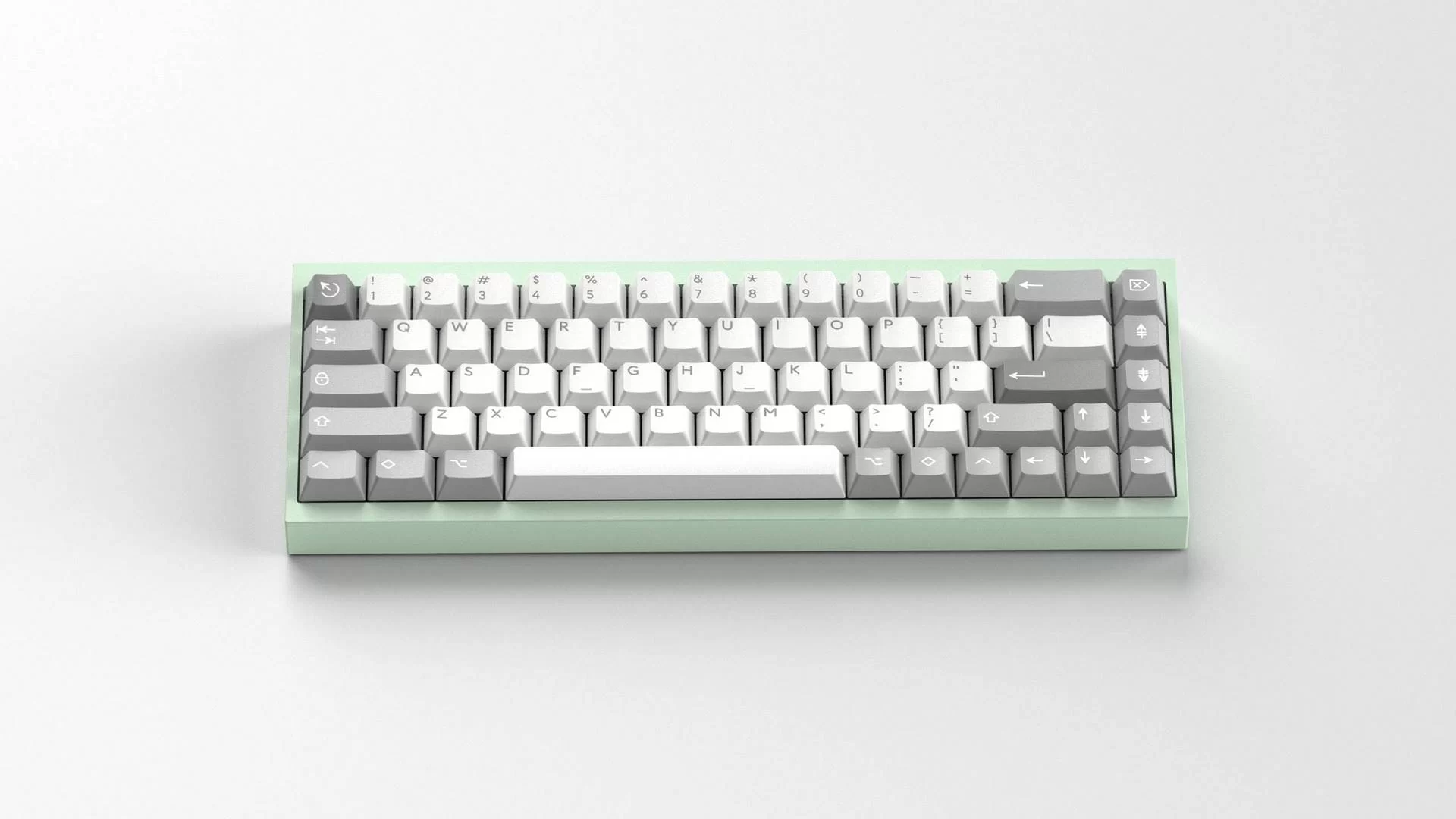

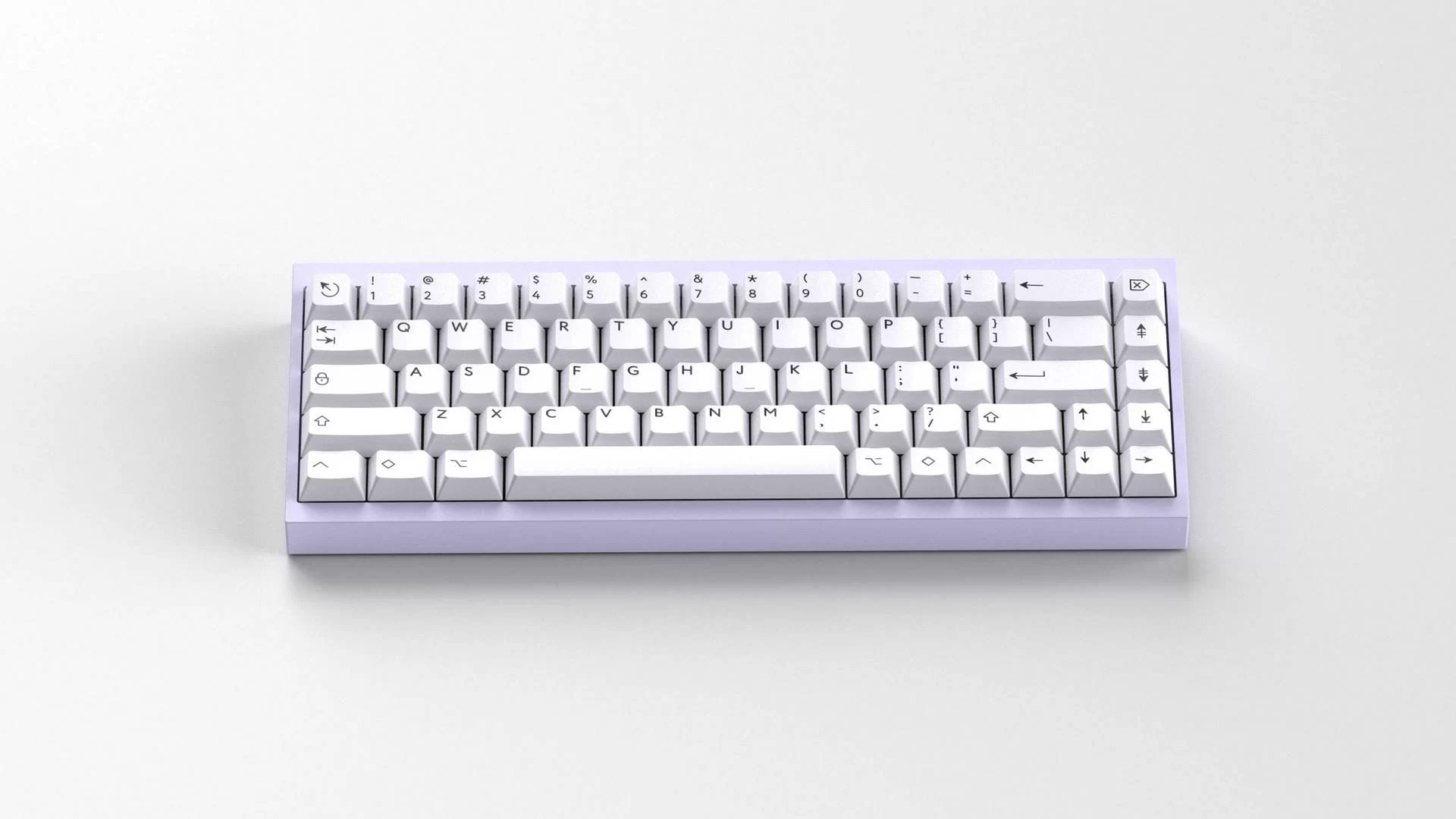

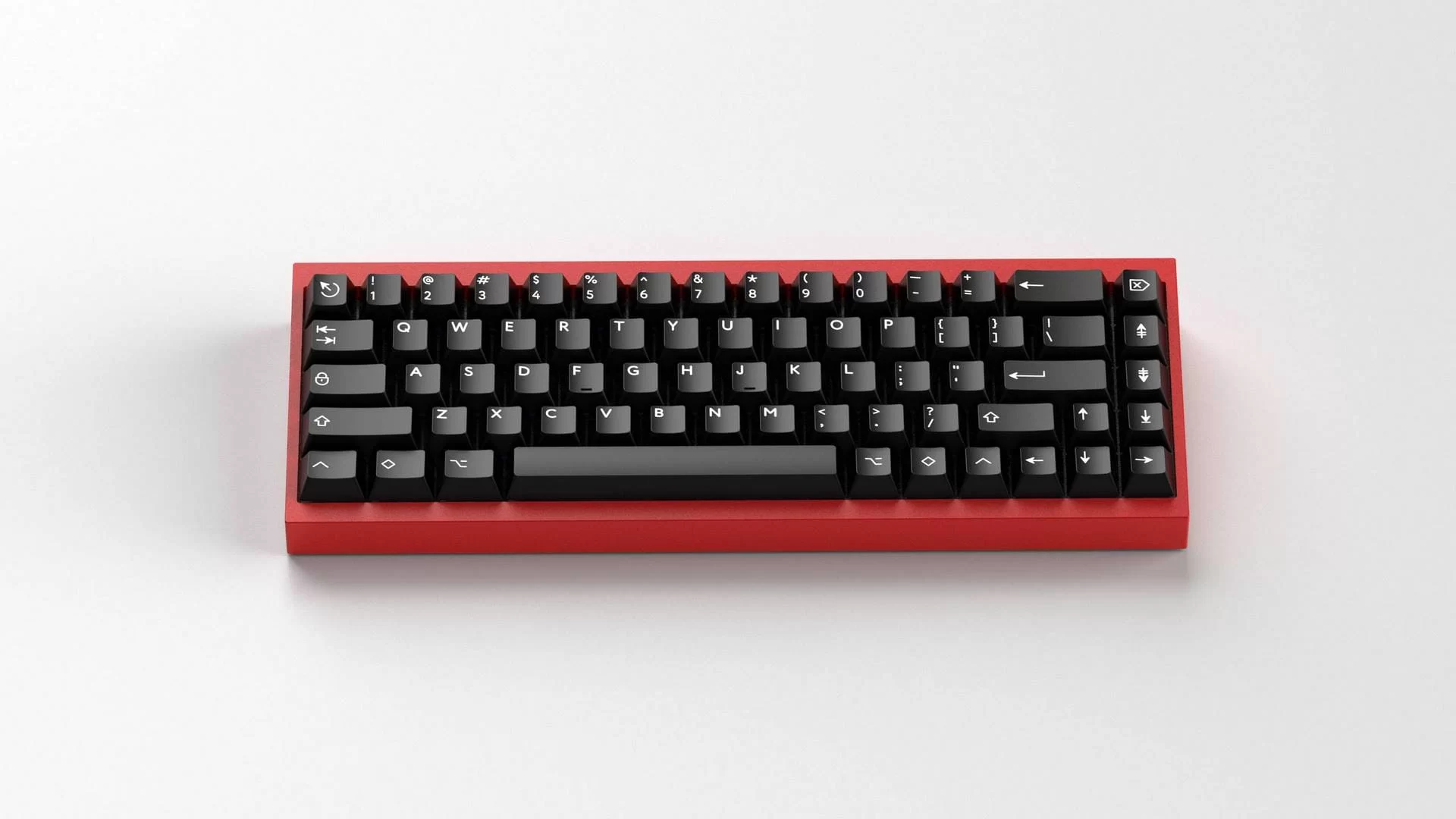

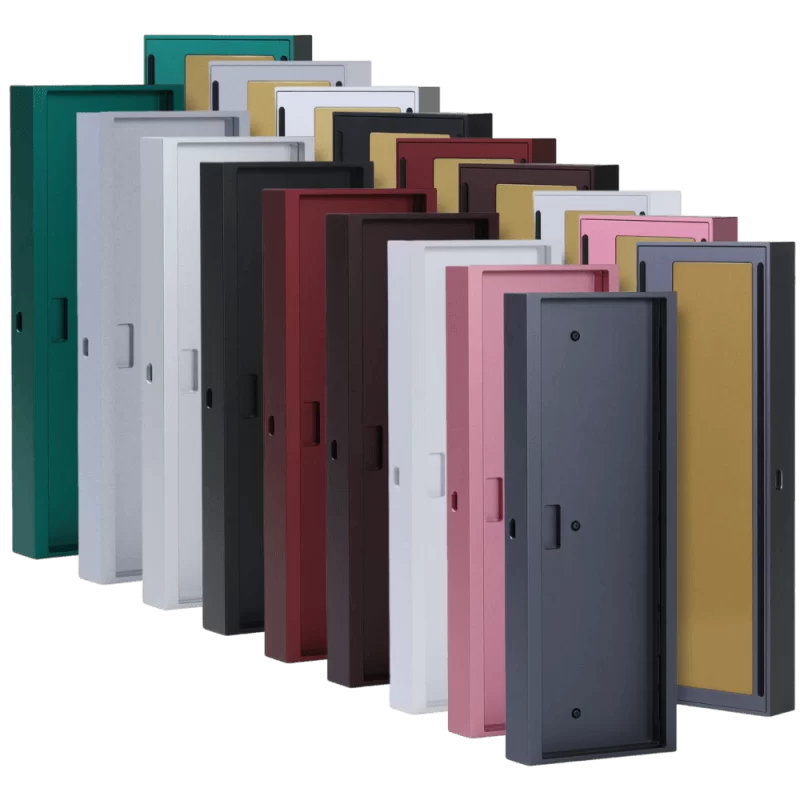

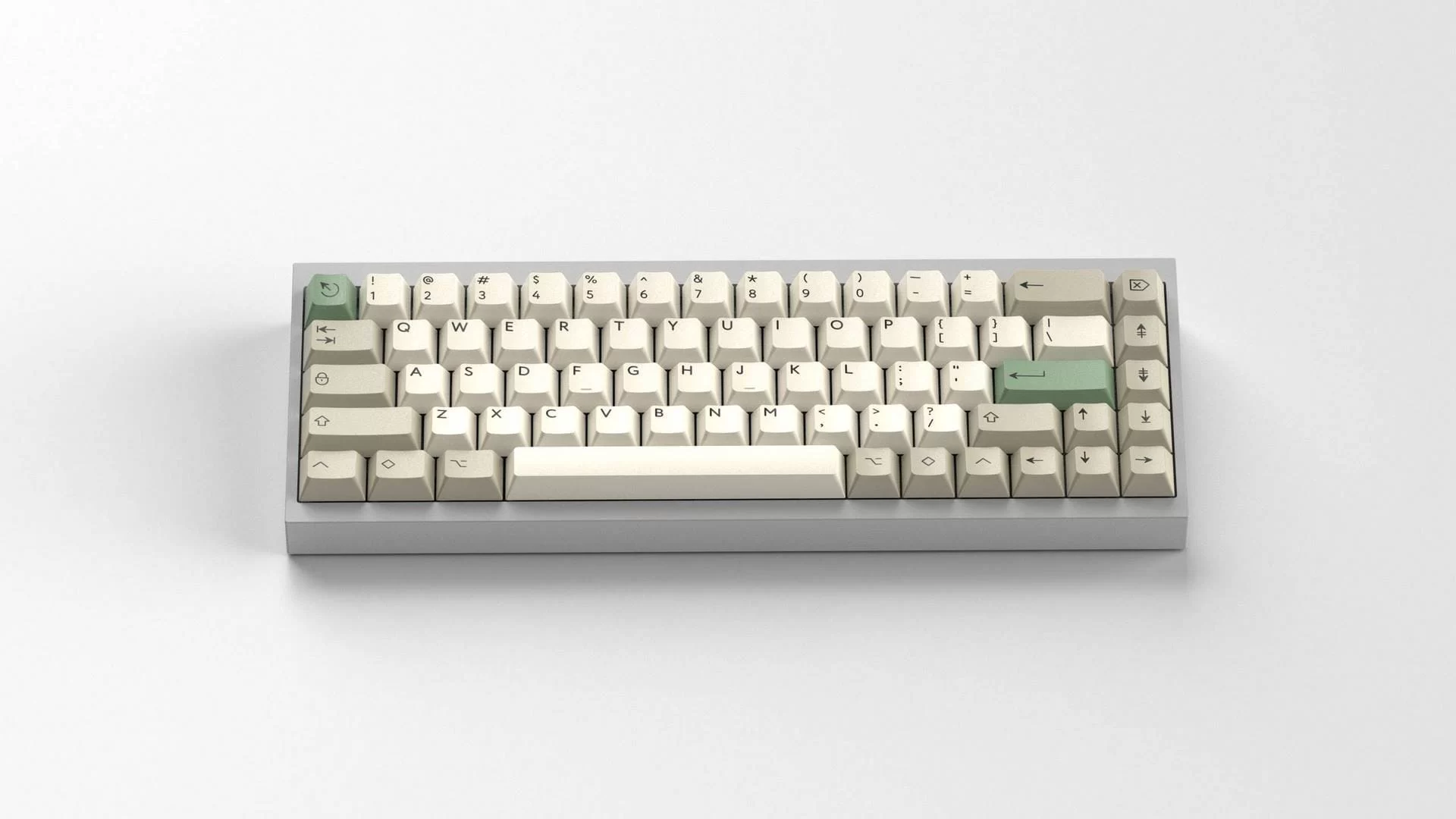

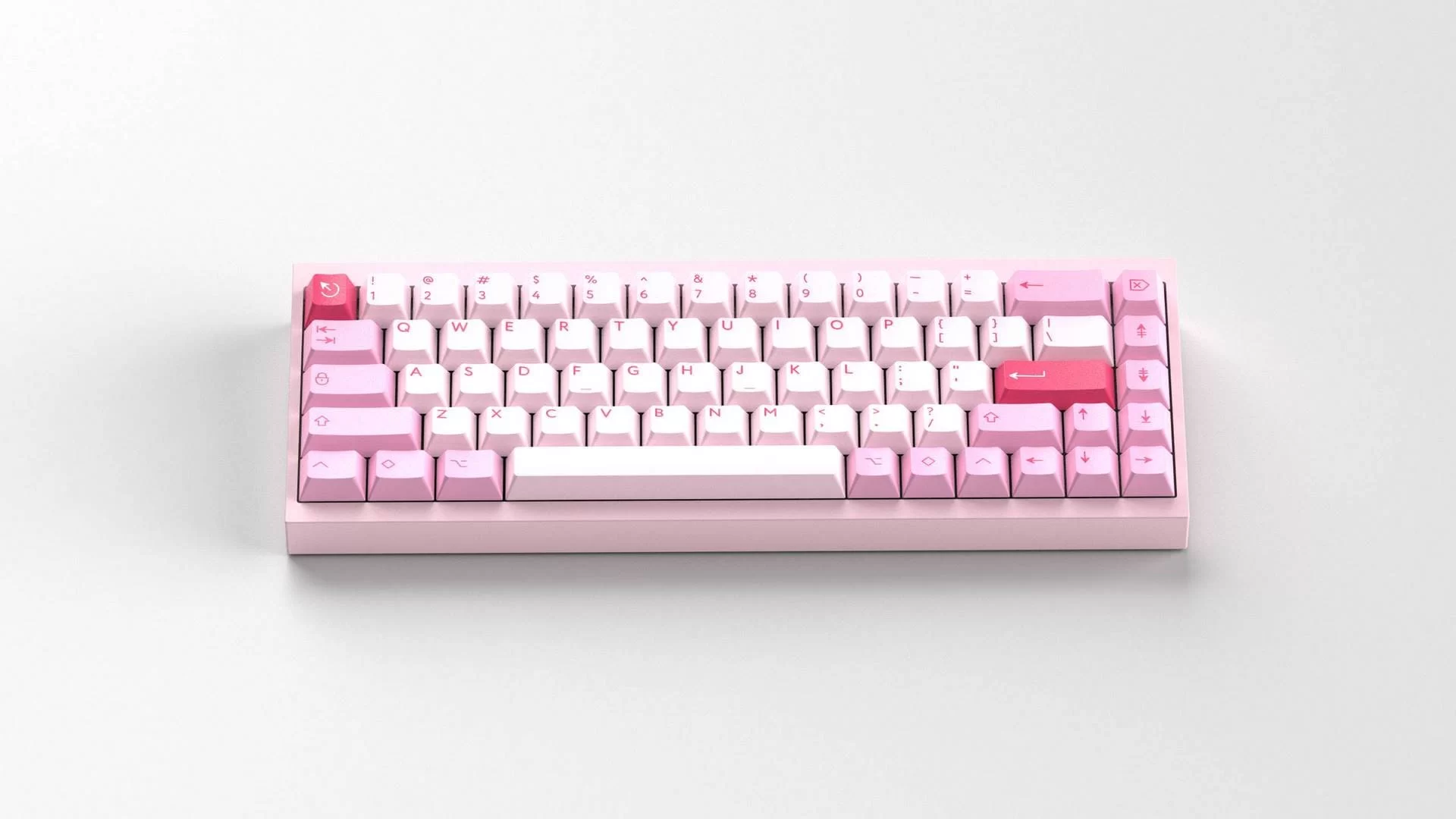

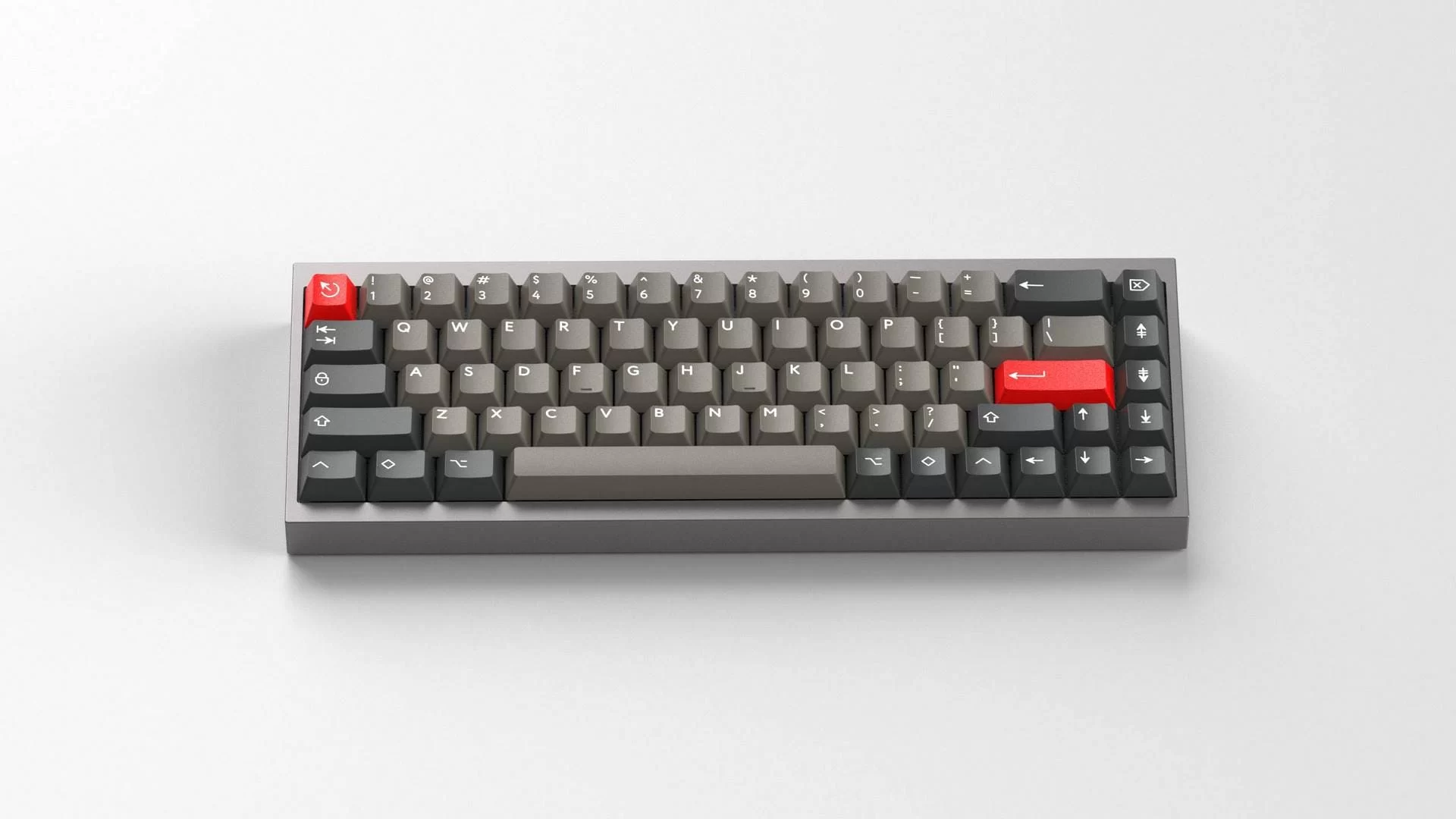

Multiple colors are available
Electrostatic coating and anodizing

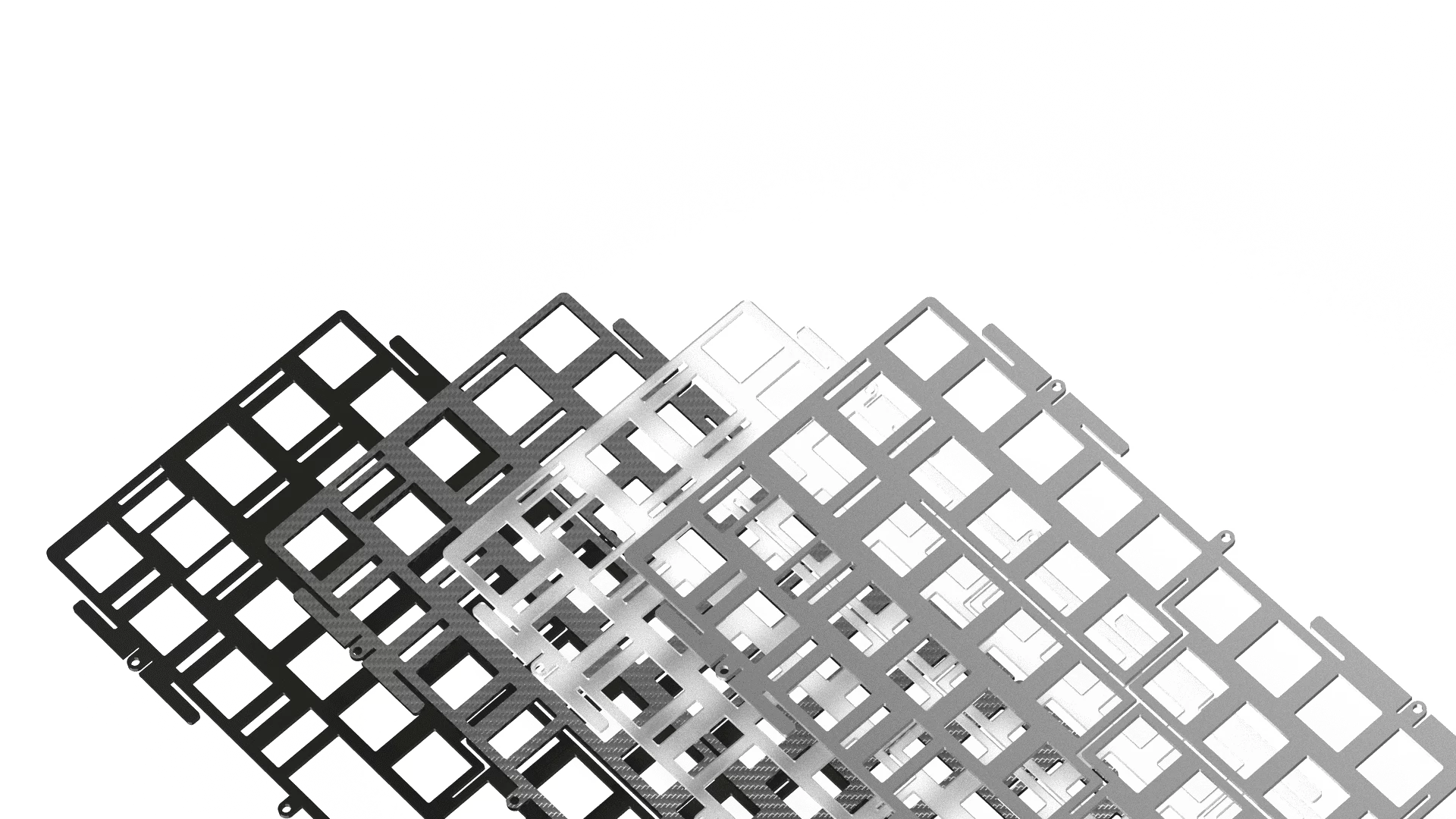

Multiple materials can be selected

1. Fiberglass
2. Carbon fiber
3. Polycarbonate
4. Aluminum

Hot-swap & QMK open source firmware

Per-key RGB on the top

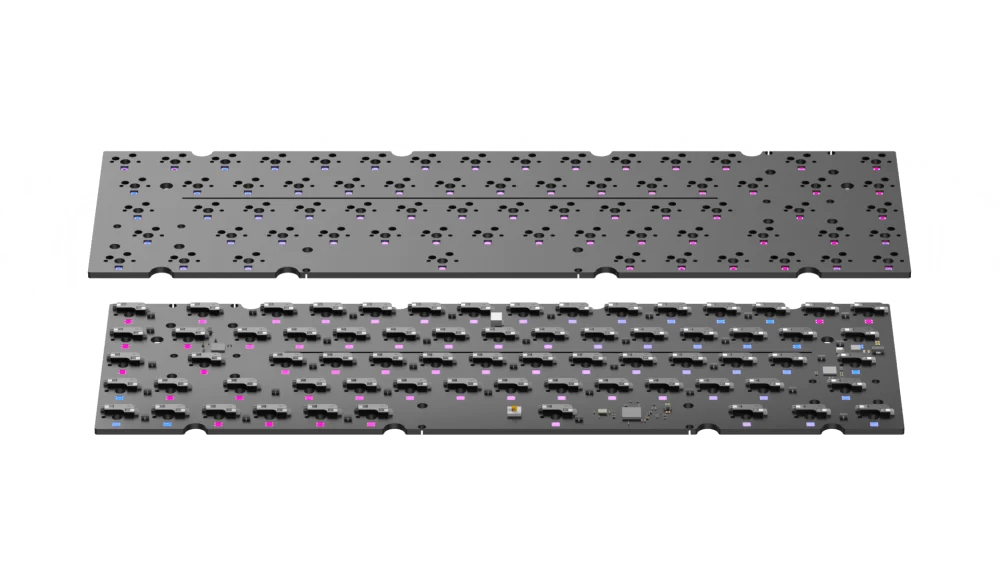

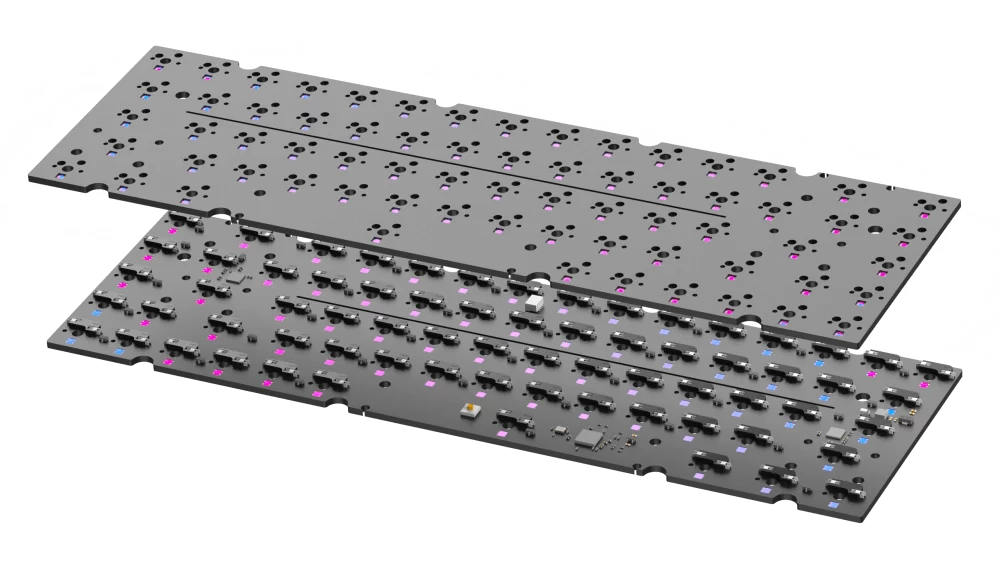

1.2 mm thickness flex cut PCB
Supports daughter board
Open source QMK firmware that supports VIA online configurator

New design with 3 different mounting styles

Tofu65 2.0 continues the design of the first generation. KBDfans does upgrade the structure this time.

The 2.0 version supports three different mounting styles: Top Mount, Gasket Mount, Silicone bowl Gasket mount（Available in 3 different hardness silicone bowls）, which meant to provide three different typing experiences on one keyboard.

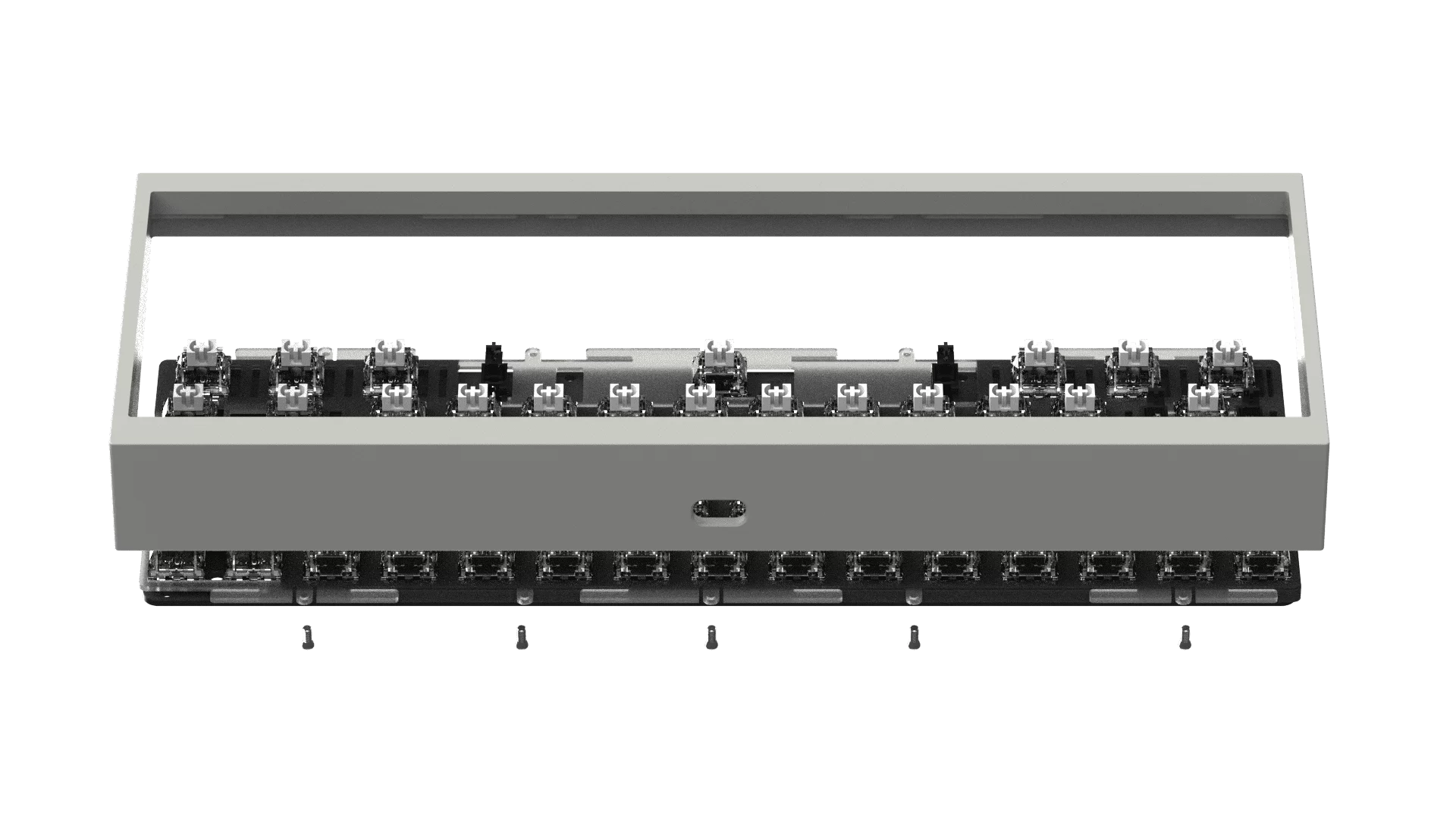

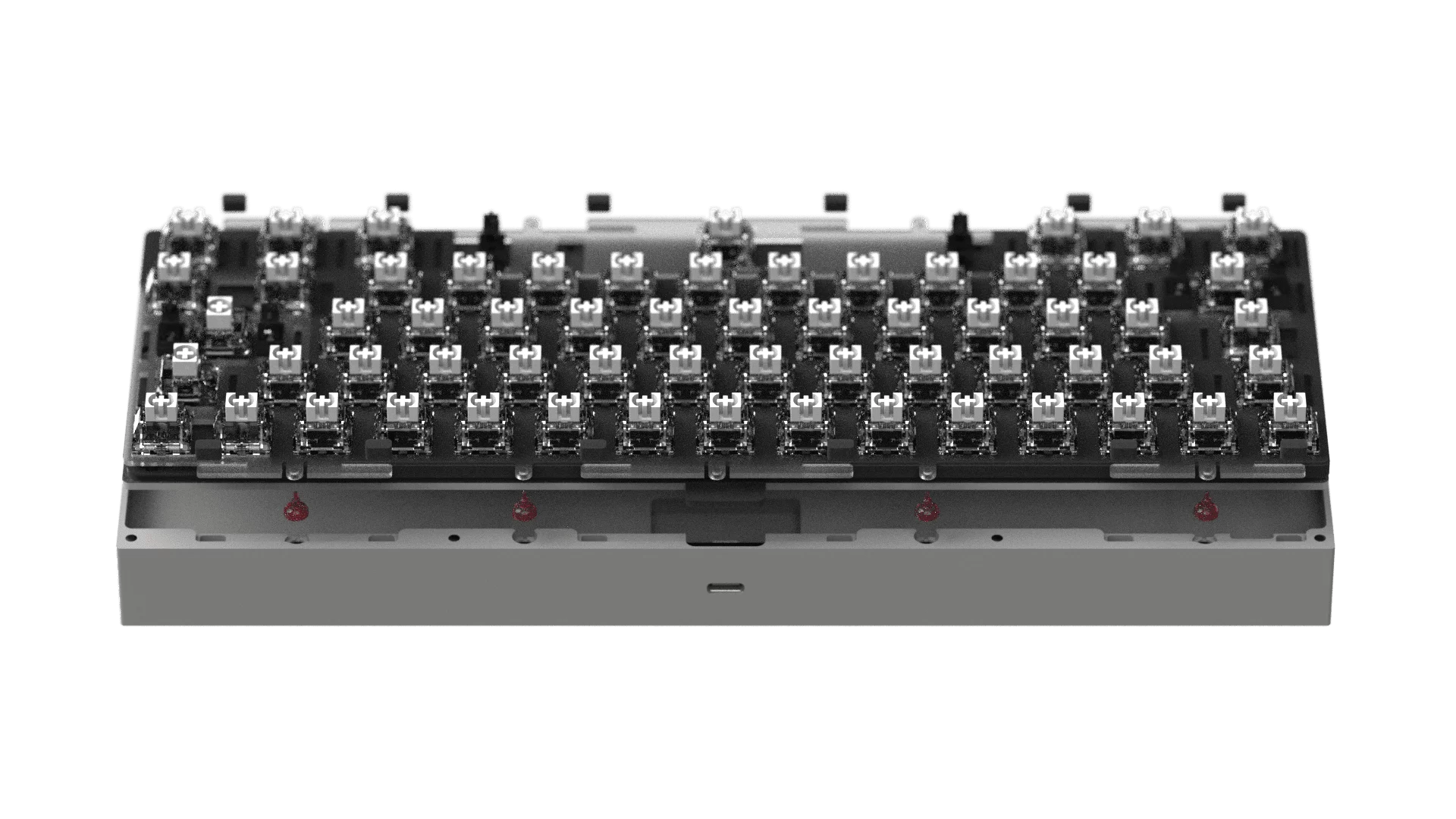

Top mount

Silicone bowl gasket

Silicone socks gasket

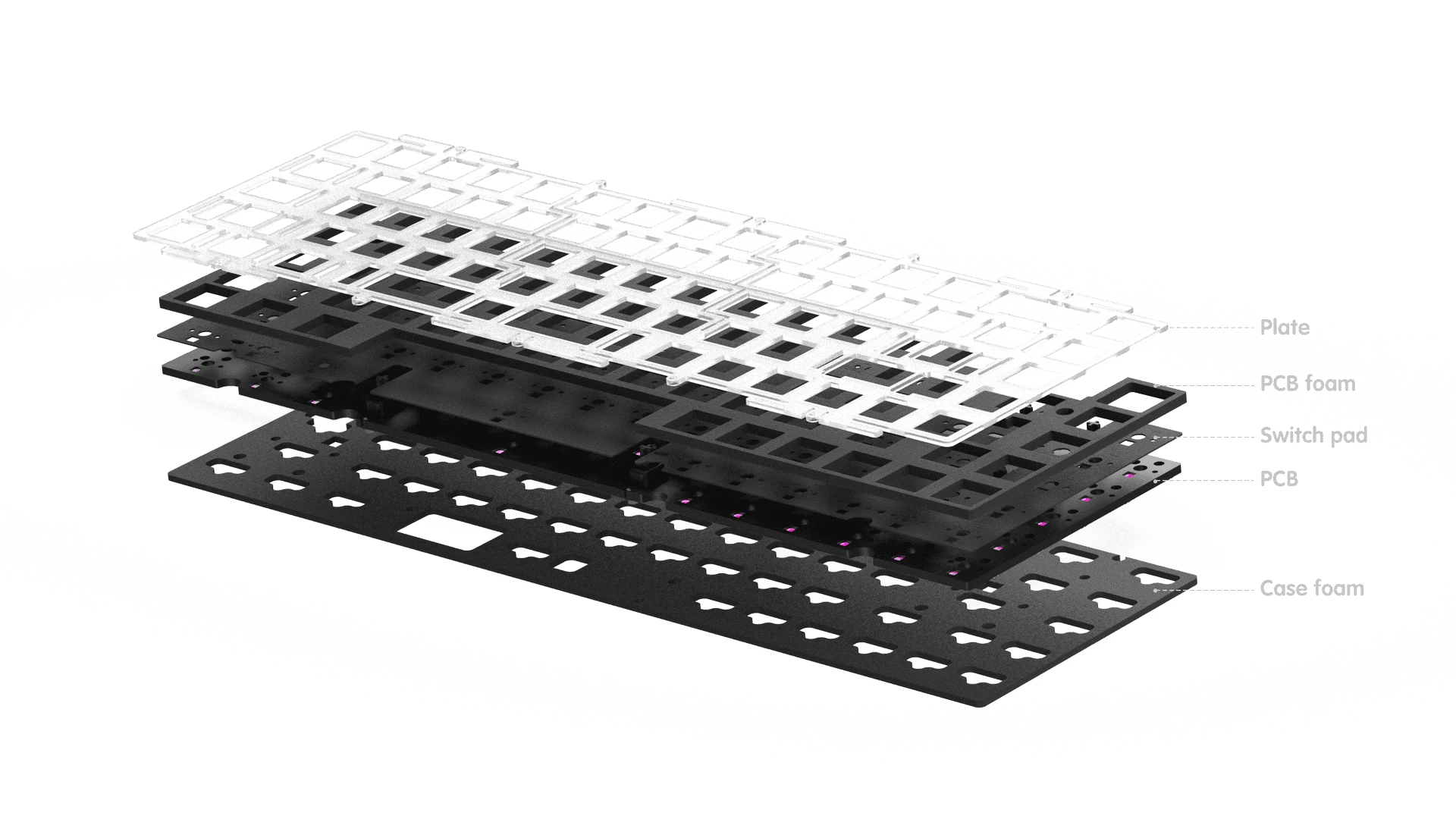

Explosion Diagram

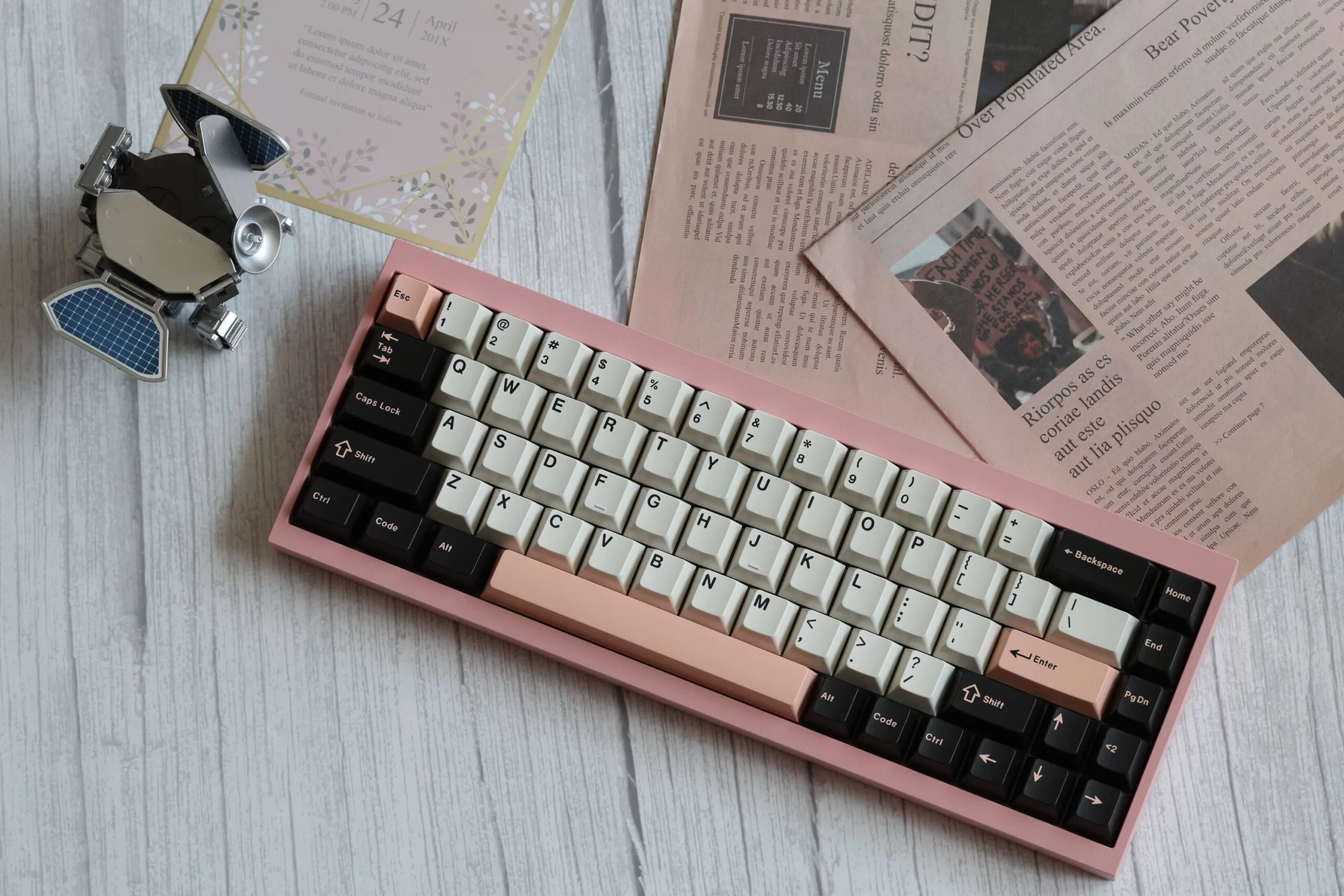

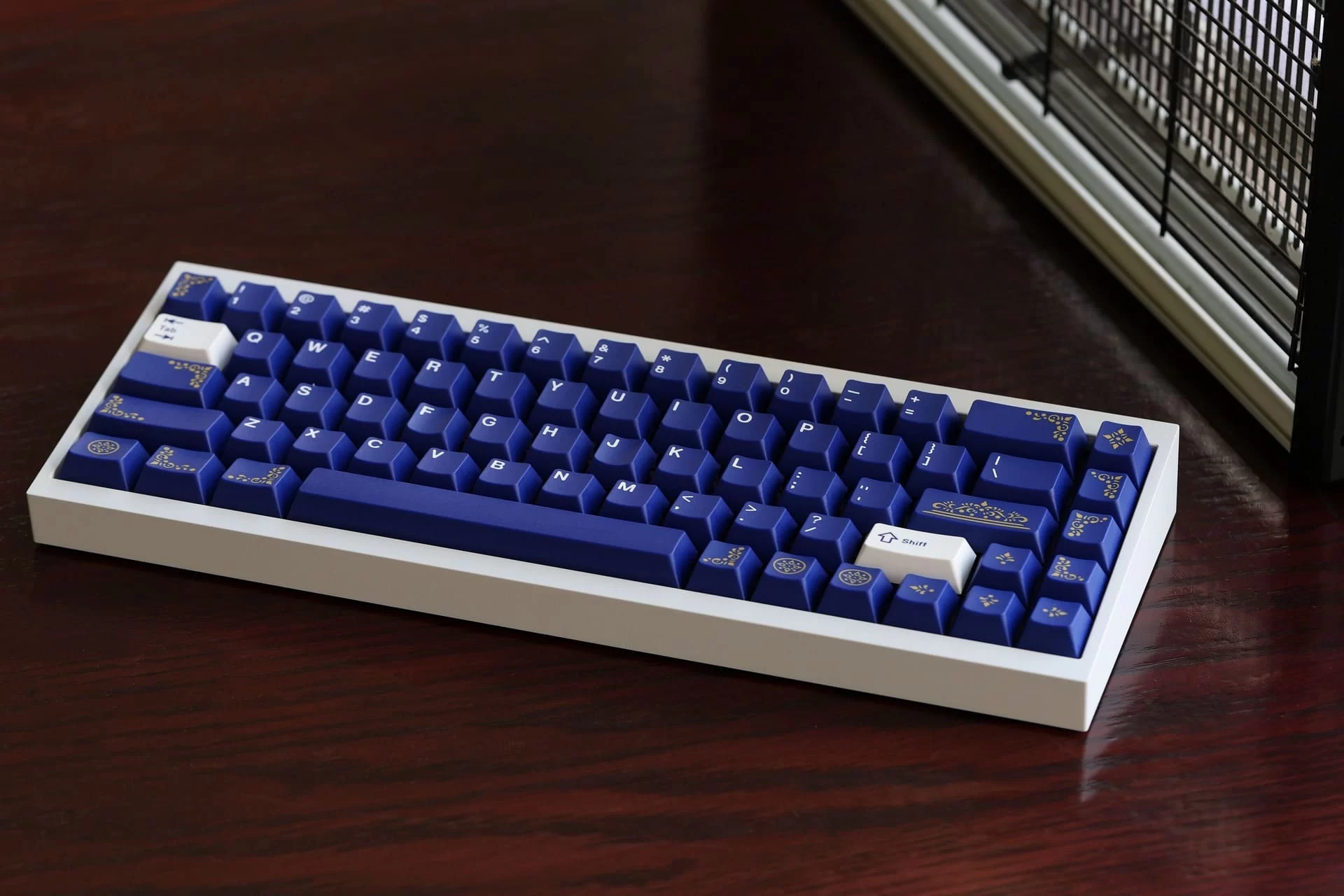

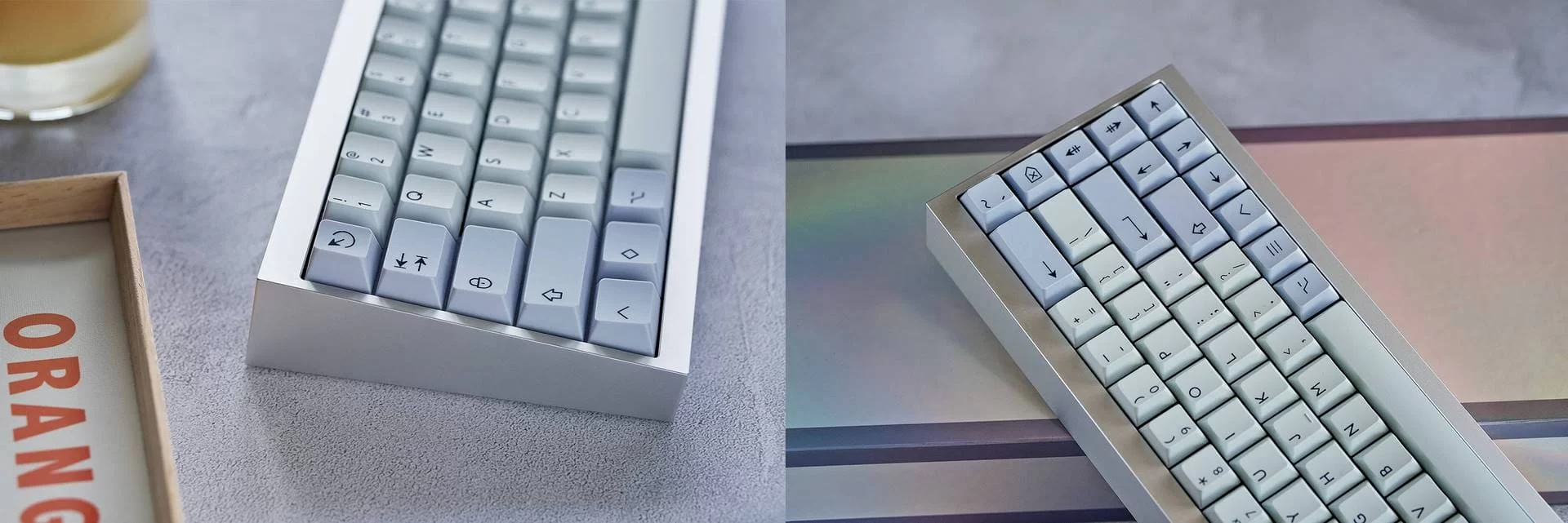

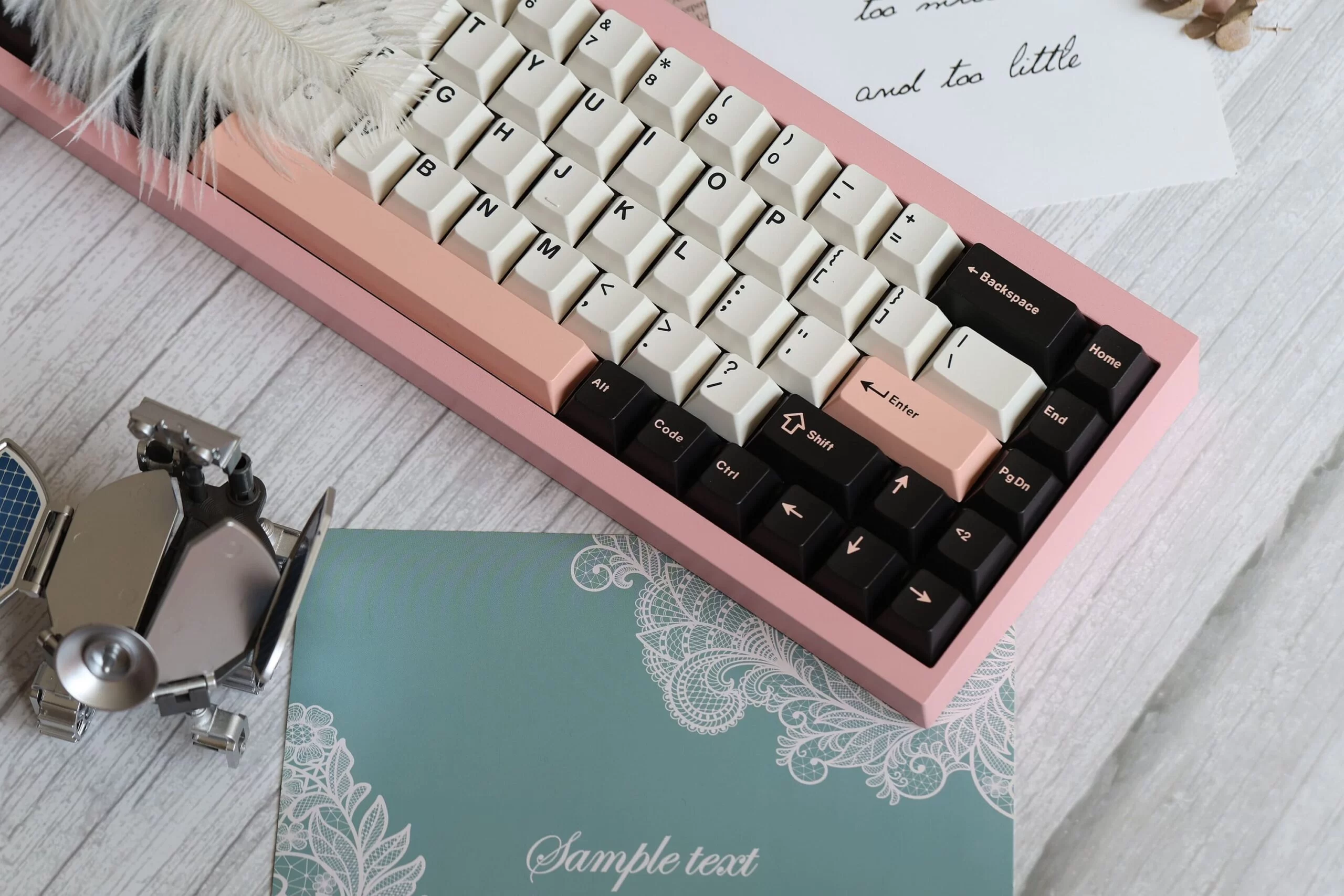

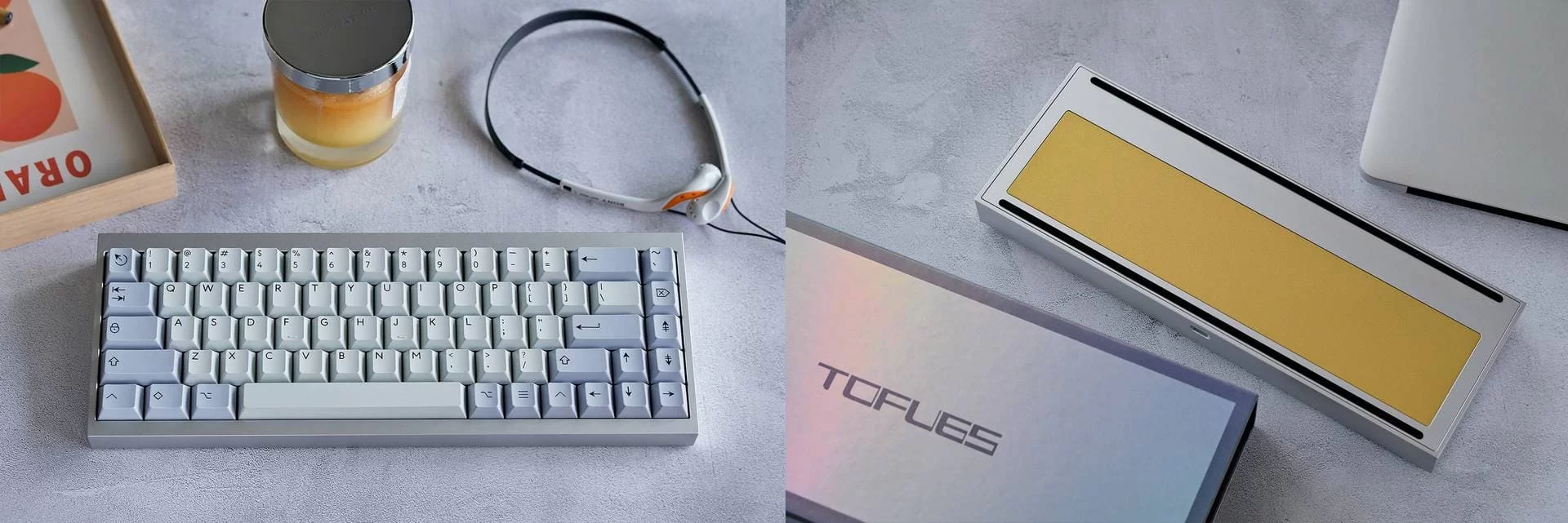

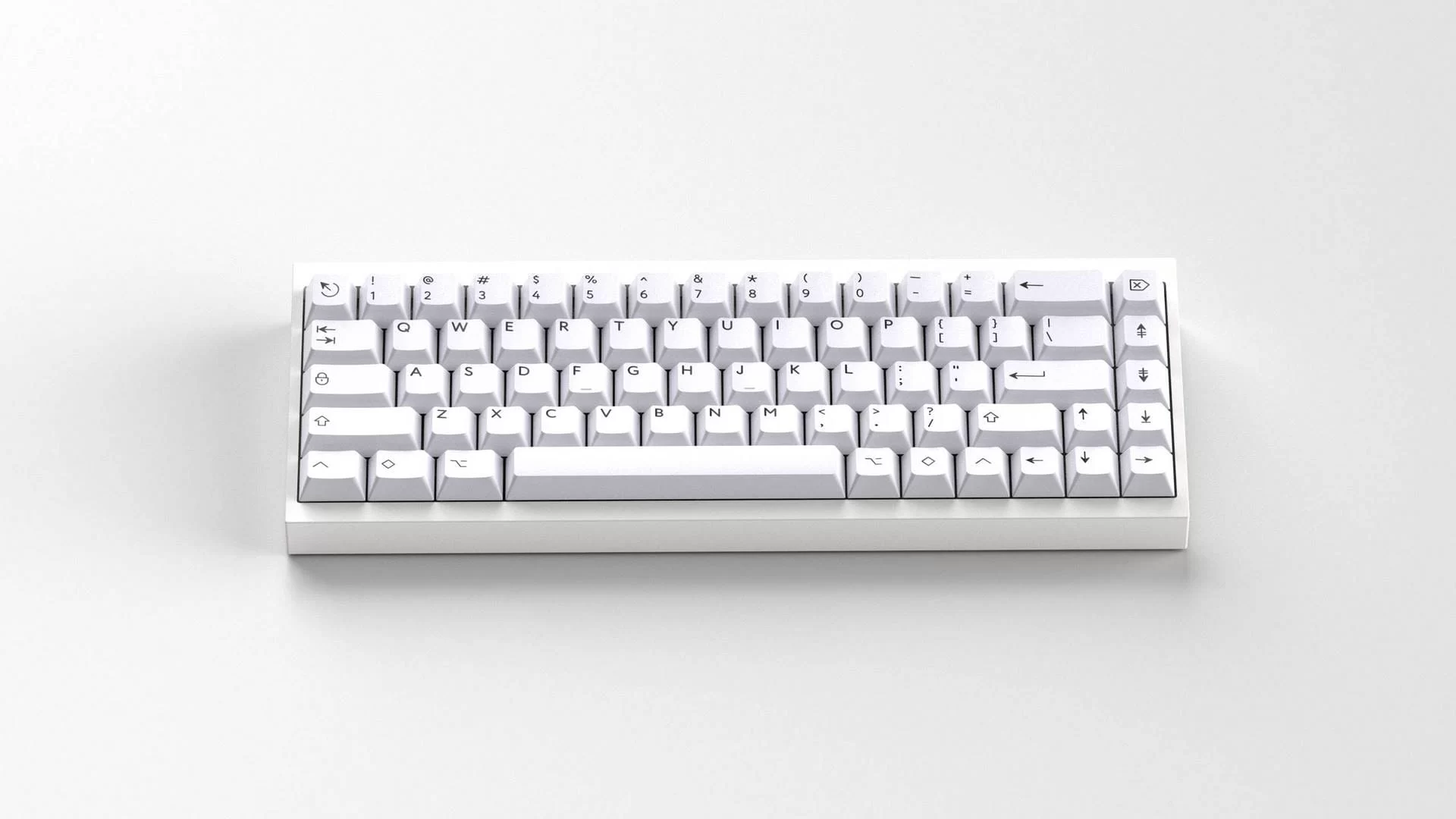

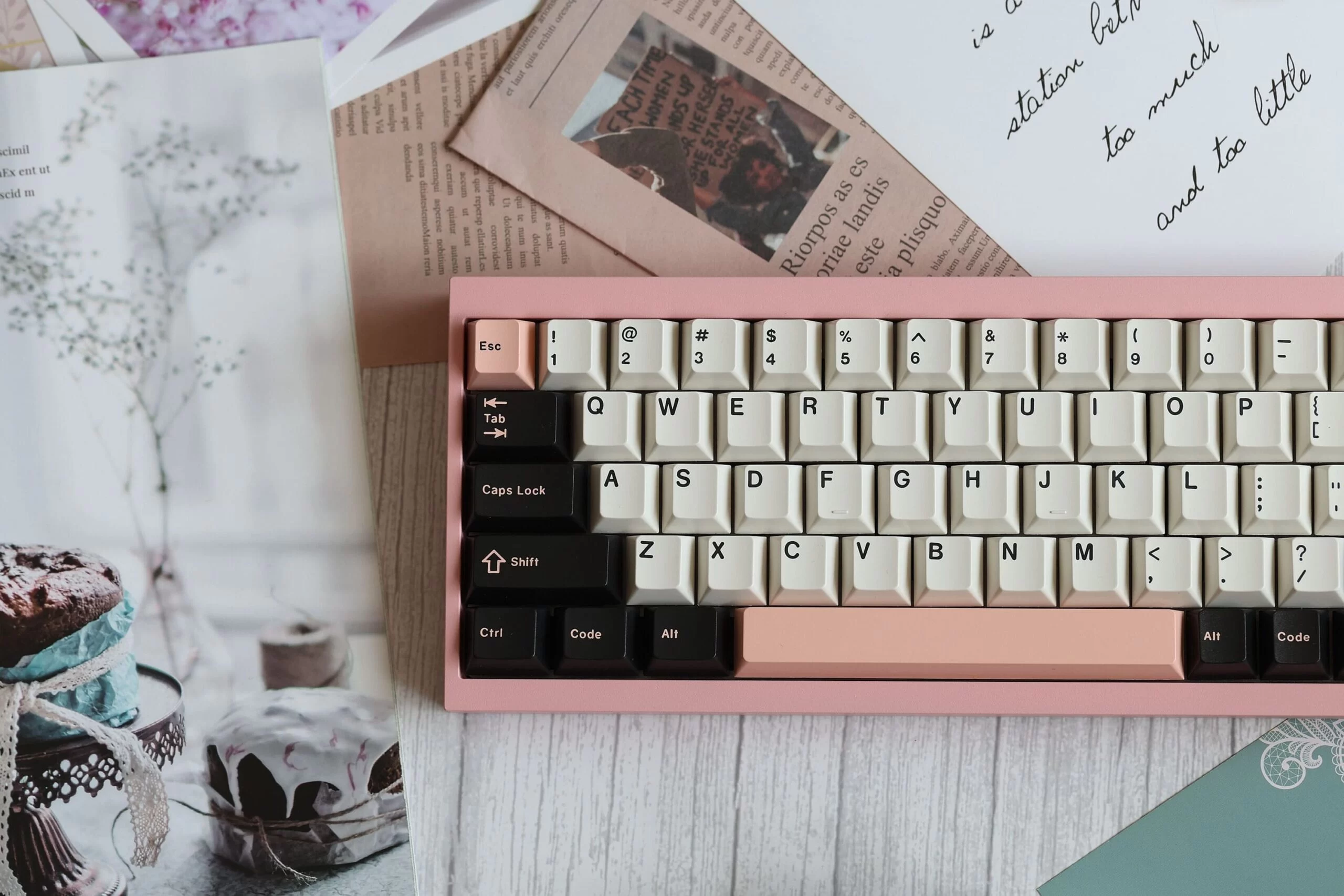

Pictures

Specifications

Aluminum case (anodized and electrostatically coated)
PC/ Aluminum/ Fiberglass/ Carbon fiber plate
Hot-swappable PCB, supports per-key RGB, QMK firmware, VIA support

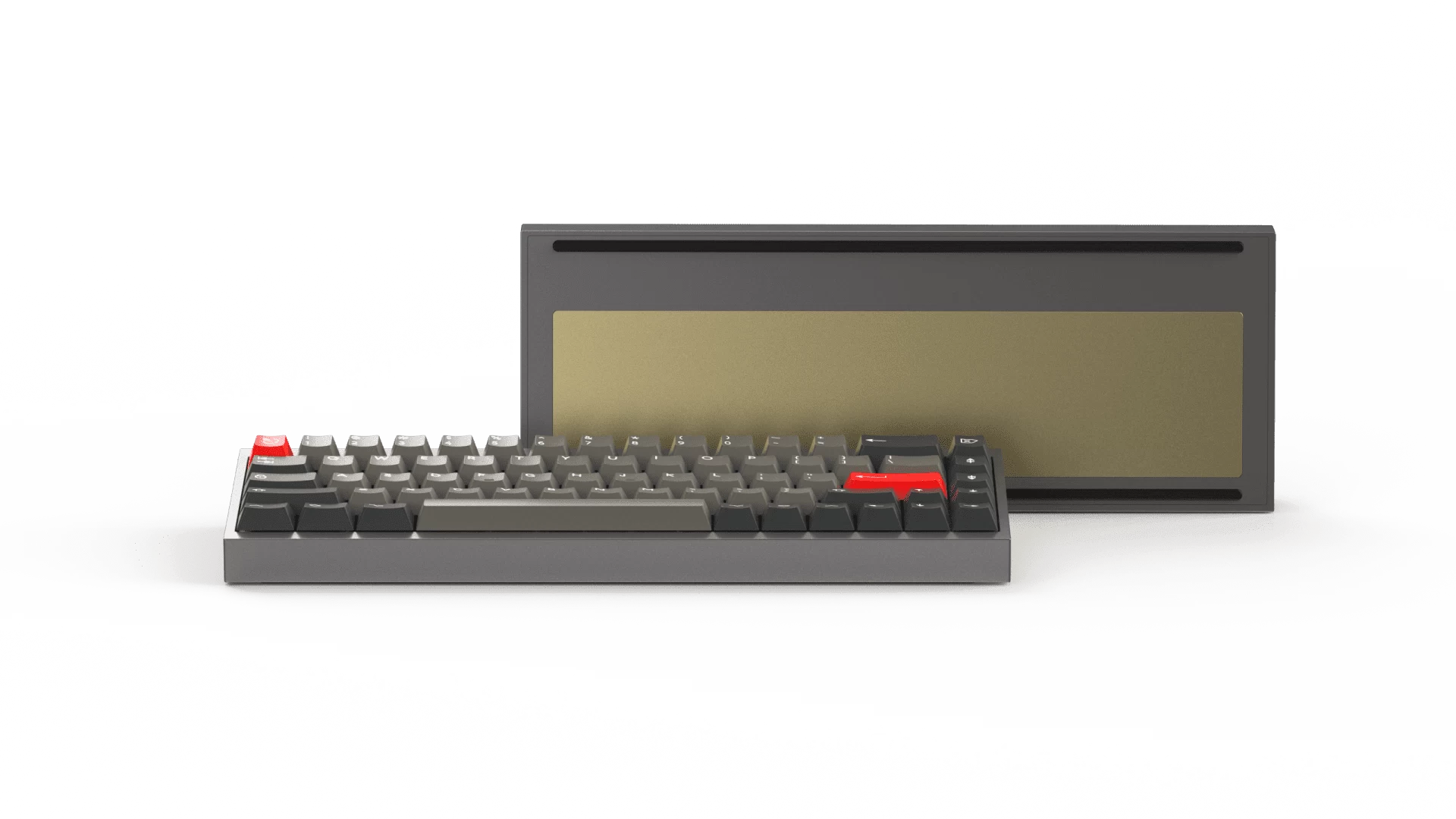

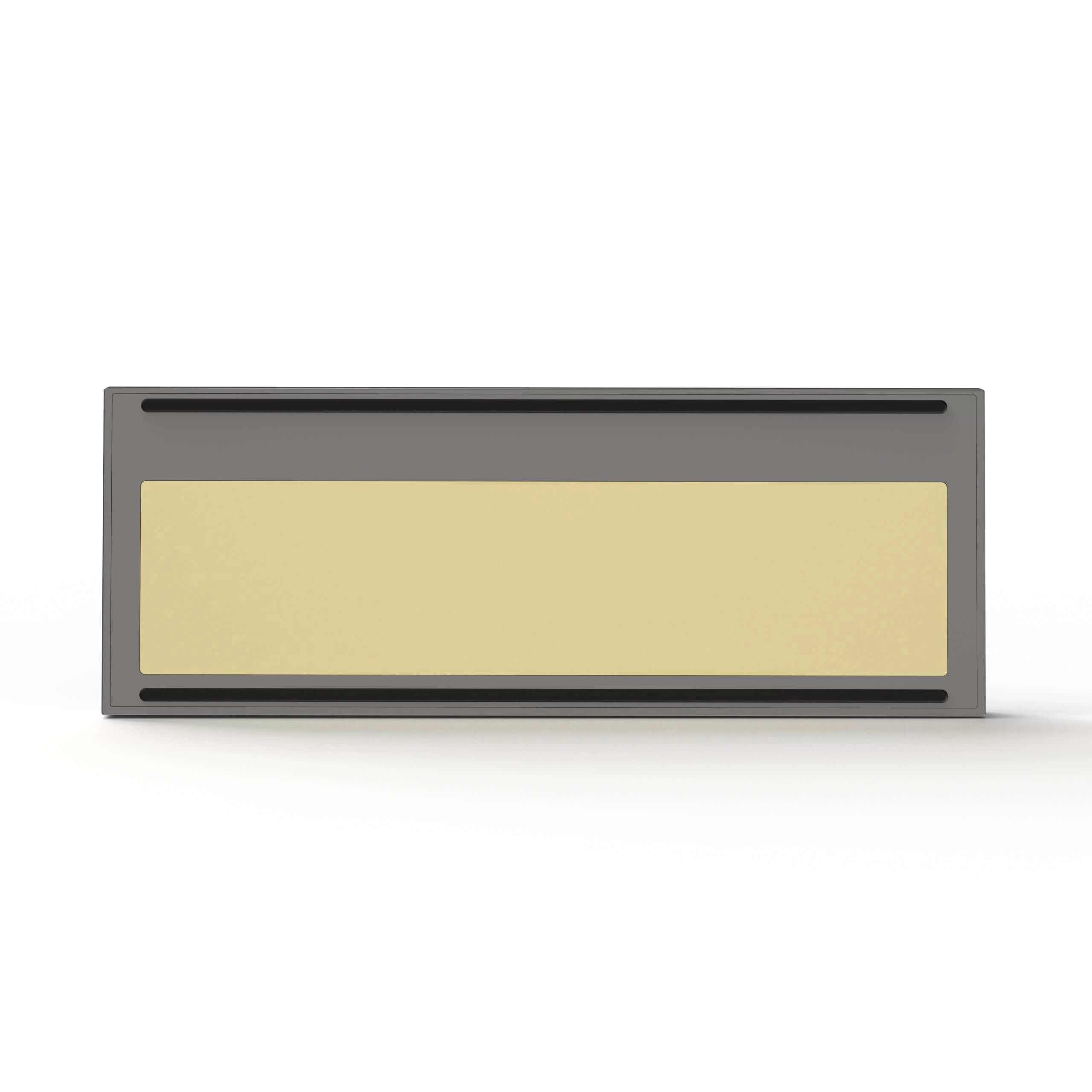

Brass weight (transparent E-coating after sandblasting)
Top mount, silicone socks, silicone bowl, 3 types of structural support
Flex cut PCB, thickness 1.2 mm
USB-C daughterboard support
≈1.7 kg after assembly

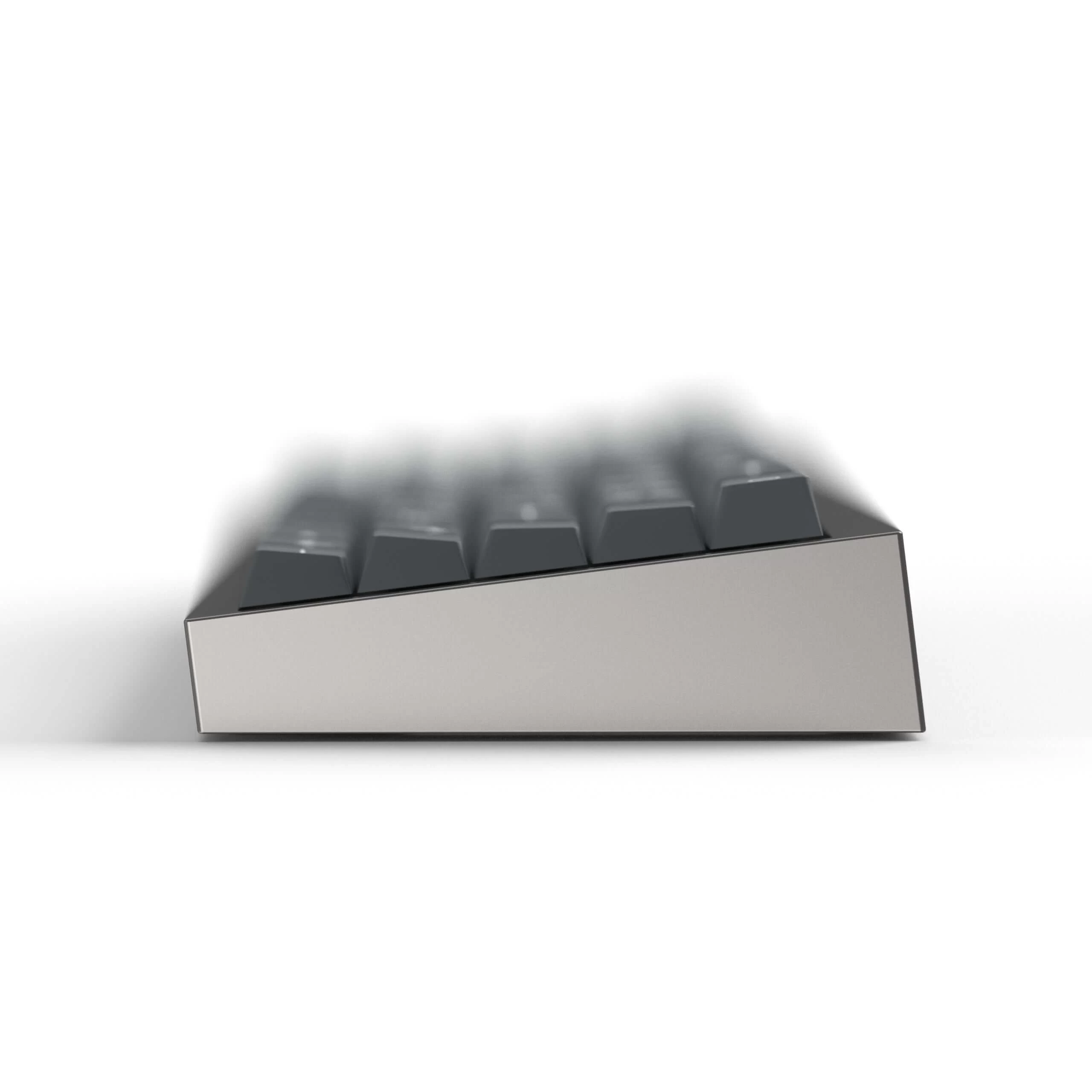

Length: 313.7 mm, width: 115.7 mm, front: 18.5 mm, back: 32.5 mm, typing angle: 7°
Design by KBDfans
Made in China
Screwless exterior design, the detachable silicon feet hiding all the screws at the bottom

Include

Aluminum top and bottom case x1
Brass weight x1
Plate x1
Hot-swappable PCB x1
USB-C daughterboard x1
Silicone bowl x1 set
Silicone socks x1 set
Bottom poron x1
Plate poron x1
EVA switch pad x1
Cherry screw-in stabilizers x1 set
Screws and rubber feet x1 set

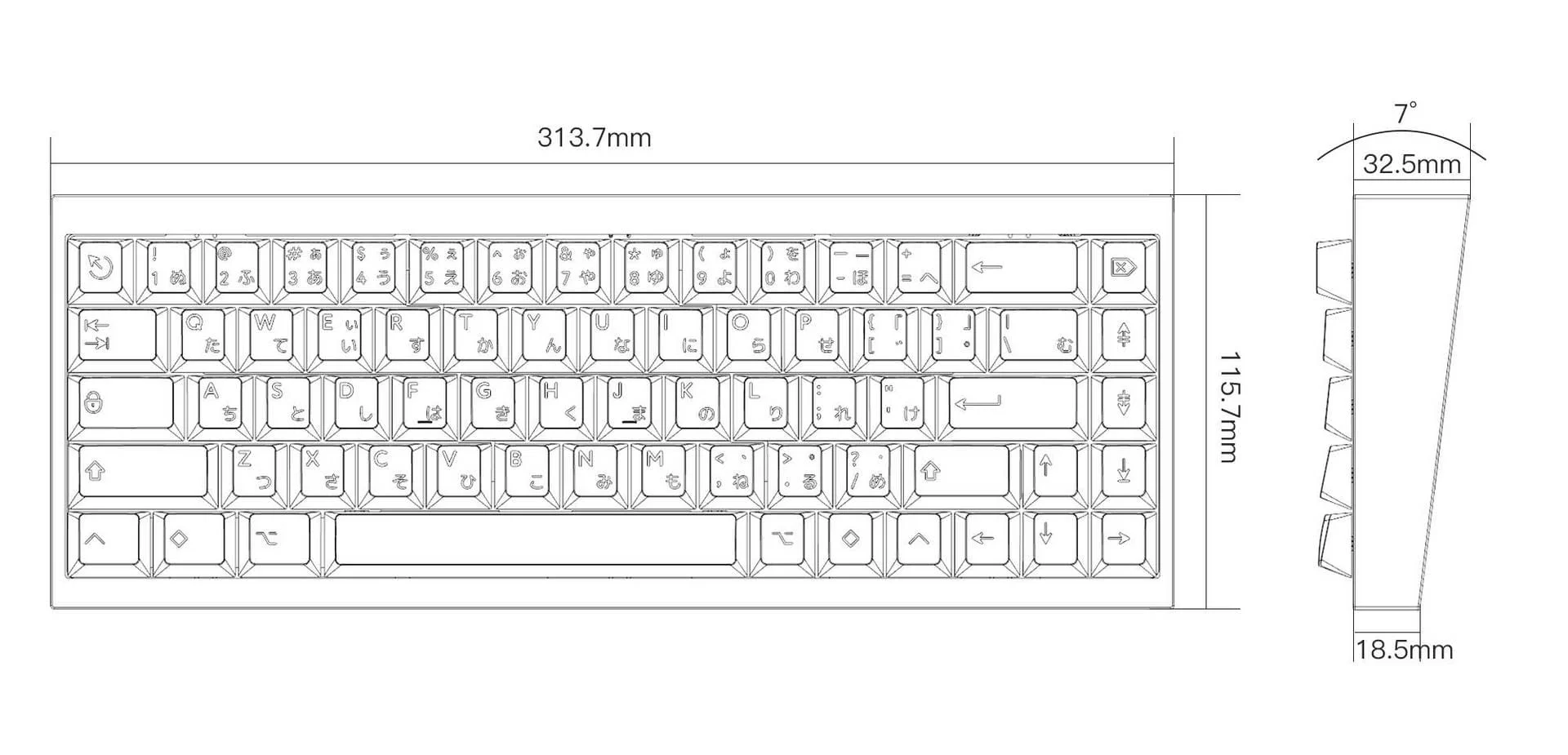

Dimension

Firmware

Flash Manual
dztech_tofu_jr_v1_via.uf2
tofu_jr.json
The firmware of Tofu65 2.0 is the same as Tofu Jr.

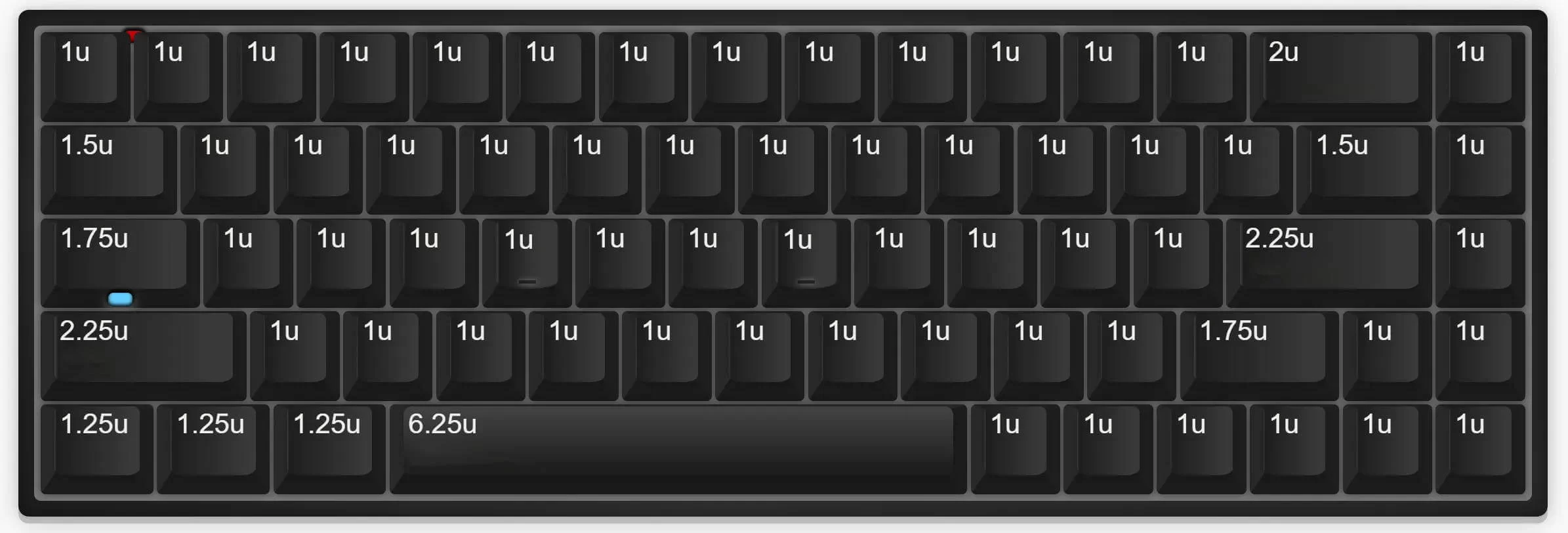

Layout

Building tutorial

Lưu ý: chỉ là bộ kit bàn phím, không bao gồm switch và keycap.

Tân Thành Danh hỗ trợ build full phím và full mods với chi phí ưu đãi nhất.
