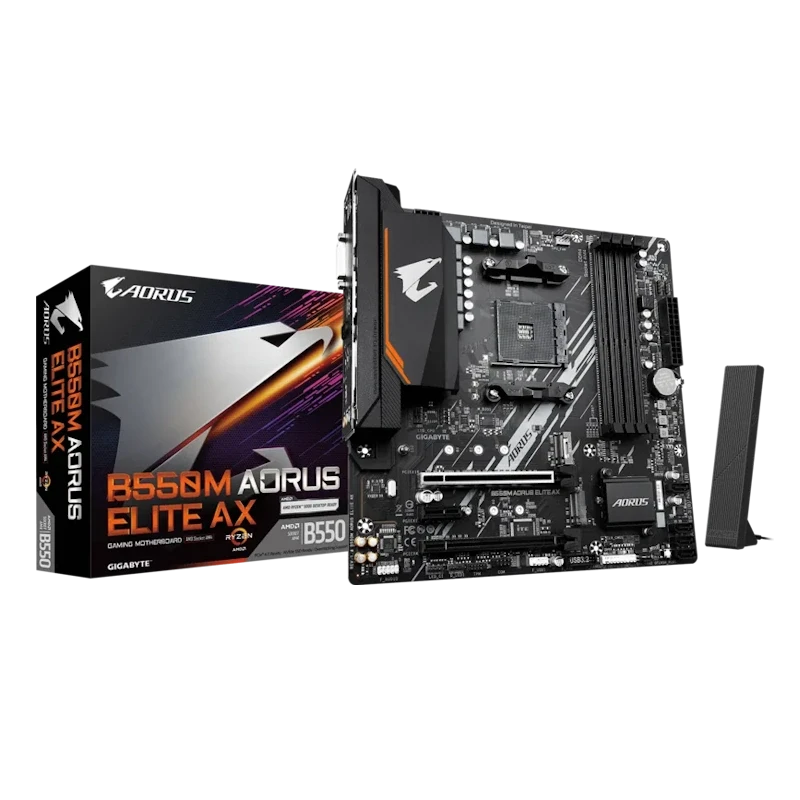

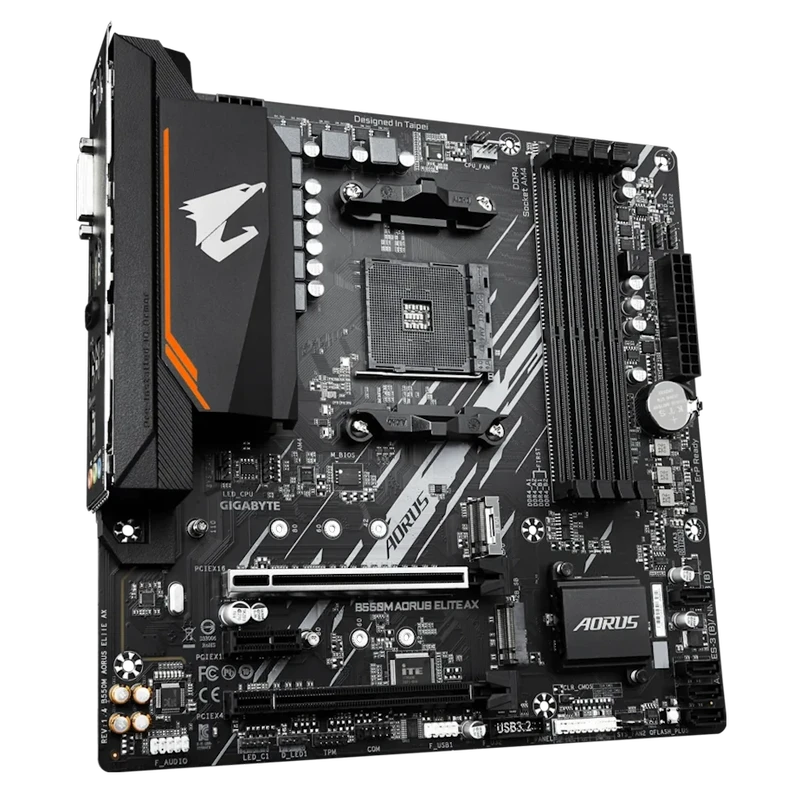

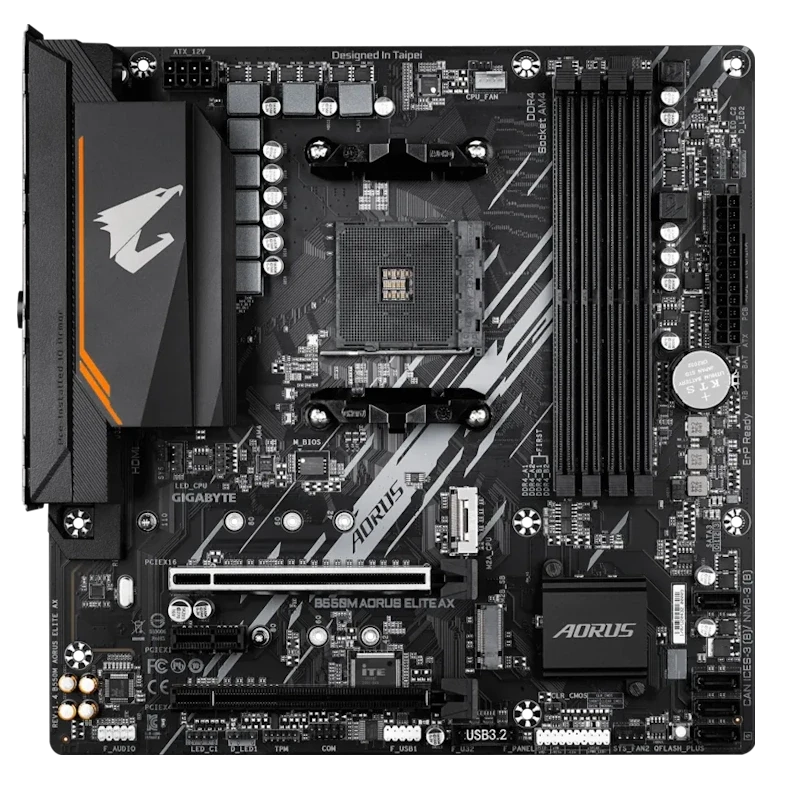

GIGABYTE B550M AORUS ELITE AX (rev. 1.x) Mainboard

GIGABYTE B550M AORUS ELITE AX (rev. 1.x) Mainboard - Ảnh 2

GIGABYTE B550M AORUS ELITE AX (rev. 1.x) Mainboard - Ảnh 3

GIGABYTE B550M AORUS ELITE AX (rev. 1.x) Mainboard - Ảnh 4

GIGABYTE B550M AORUS ELITE AX (rev. 1.x) Mainboard

0.0 (0 đánh giá) | Đã bán 7

Còn hàng

3.190.000 ₫

~~3.490.000 ₫~~ -9%

Bo mạch chủ AMD Gigabyte B550M AORUS ELITE AX là bo mạch chủ mATX tầm trung mạnh mẽ, hỗ trợ PCIe 4.0 và tích hợp sẵn Wi-Fi 6E cho người dùng Ryzen.

Hỗ trợ bộ vi xử lý AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 và Ryzen™ 3000 G-Series
ECC kênh đôi/Không ECC DDR4 không có bộ đệm, 4 DIMM
Giải pháp VRM kỹ thuật số thuần túy 5+3 pha với MOSFET có điện trở dẫn thấp (RDS(on))
Khe cắm PCIe 4.0 Ultra Durable™ x16
Hai khe cắm NVMe PCIe 4.0/3.0 M.2 siêu nhanh
Wi-Fi 6E 802.11ax và Bluetooth 5.3 tích hợp sẵn.
Tụ điện âm thanh chất lượng cao và bộ lọc nhiễu âm thanh cho chất lượng âm thanh tối ưu.
Mạng LAN GbE Realtek với quản lý băng thông
Hỗ trợ HDMI và DVI phía sau
RGB FUSION 2.0 hỗ trợ đèn LED có thể điều chỉnh địa chỉ và dải đèn LED RGB.
Quạt thông minh Smart Fan 5 sở hữu nhiều cảm biến nhiệt độ, đầu cắm quạt lai với chức năng dừng quạt (FAN STOP).
Q-Flash Plus cập nhật BIOS mà không cần lắp đặt CPU, RAM và card đồ họa.
Thiết kế điện trở chống lưu huỳnh

Còn hàng (có thể đặt hàng trước)

Cam kết hàng chính hãng

100% hàng chính hãng

Đổi trả dễ dàng

Trong 7 ngày

Bảo hành chính hãng

Giao hàng nhanh

Toàn quốc

TỔNG QUAN THÔNG SỐ KỸ THUẬT

HIỆU SUẤT

KẾT NỐI

LÀM MÁT

LIGHTING

ÂM THANH

ĐỘ BỀN

GIGABYTE EXCELLENCE

Hỗ trợ bộ vi xử lý AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 và Ryzen™ 3000 G-Series
ECC kênh đôi/Không ECC DDR4 không có bộ đệm, 4 DIMM
Giải pháp VRM kỹ thuật số thuần túy 5+3 pha với MOSFET có điện trở dẫn thấp (RDS(on))
Khe cắm PCIe 4.0 Ultra Durable™ x16
Hai khe cắm NVMe PCIe 4.0/3.0 M.2 siêu nhanh
Wi-Fi 6E 802.11ax và Bluetooth 5.3 tích hợp sẵn
Tụ điện âm thanh chất lượng cao và bộ lọc nhiễu âm thanh
Mạng LAN GbE Realtek với quản lý băng thông
Hỗ trợ HDMI và DVI phía sau
RGB FUSION 2.0 hỗ trợ LED RGB
Quạt thông minh Smart Fan 5
Q-Flash Plus cập nhật BIOS không cần CPU
Thiết kế điện trở chống lưu huỳnh

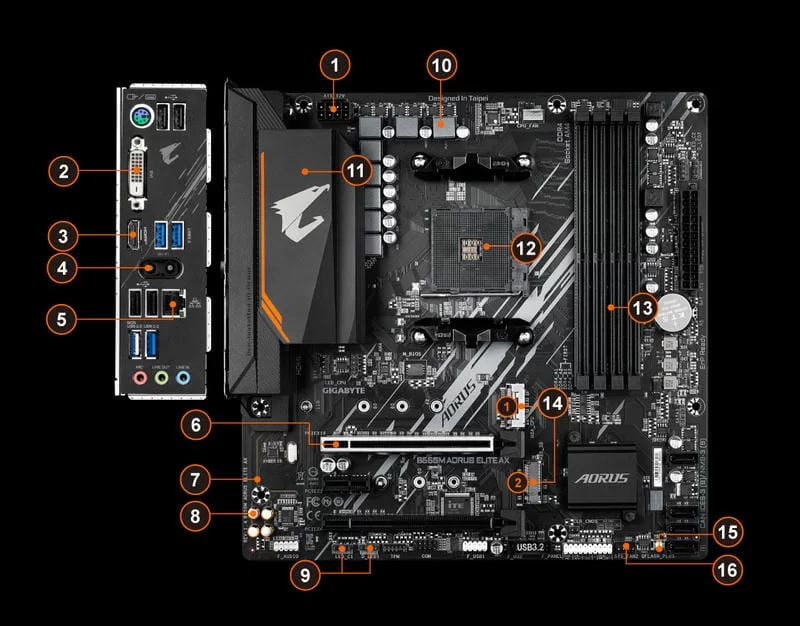

Solid Pin Power Connector

DVI

HDMI

Wi-Fi 6E 802.11ax
WIFI EZ-Plug

Realtek GbE LAN

Ultra Durable PCIe Slot
• PCIe® 4.0 Slot
• Running 1* x16

Audio Noise Guard

High-End Audio Capacitors

RGB FUSION 2.0
Addressable LED Header*2
RGB LED Header*3

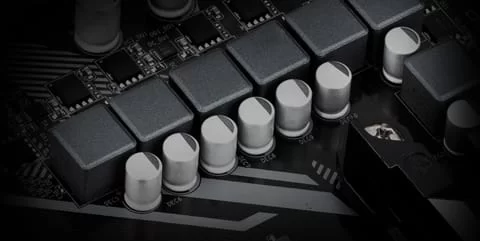

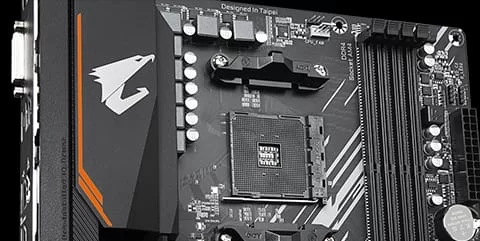

5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs

Enlarged MOSFET Heatsink

Supports 3rd Gen AMD Ryzen™ Processors

Dual Channel DDR4, 4 DIMMs

Dual M.2 Connectors
1. 22110 M.2
• PCIe 4.0 M.2 Connector
• NVMe PCIe 4.0/3.0 x4 and SATA Mode (from CPU)
2. 2280 M.2
• NVMe PCIe 3.0 x2 and SATA Mode (from Chipset)

Q-Flash Plus Button

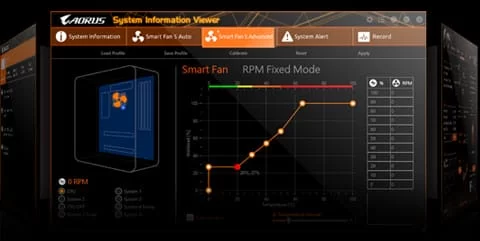

Smart Fan 5 + FAN STOP
• 3 Fan Connectors
• 5 Temperature Sensors

Model

B550M AORUS ELITE AX (rev. 1.4)

CPU

AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors

(Please refer “CPU Support List” for more information.)

Chipset

AMD B550

Memory

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)

Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:

1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

(Graphics specifications may vary depending on CPU support.)
Maximum shared memory of 16 GB

Audio

Realtek^® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek^® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Wireless Communication module

Realtek® Wi-Fi 6E RTL8852CE

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.4
Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)
* Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
* Actual support may vary by AMD CPU’s specification.
AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

Supporting PCIe 3.0 x4 mode

1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:

Supporting PCIe 3.0 x1 mode

Storage

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:

Supporting SATA and PCIe 3.0 x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

Support for RAID 0, RAID 1, and RAID 10

USB Port

CPU:

4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x serial port header

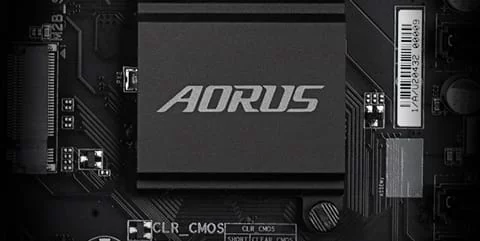

1 x Clear CMOS jumper
1 x Q-Flash Plus button

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

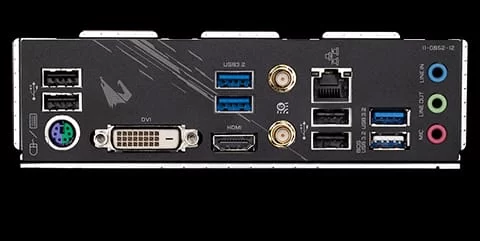

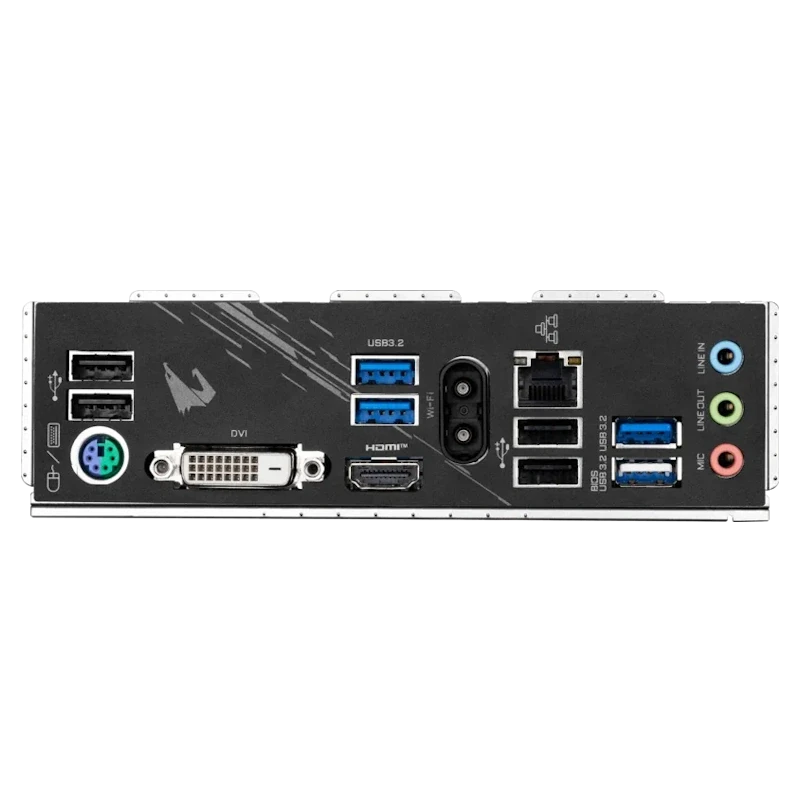

Back Panel Connectors

1 x PS/2 keyboard/mouse port
1 x DVI-D port (Note)
1 x HDMI port (Note)
2 x SMA antenna connectors (2T2R)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

(Note) Actual support may vary by CPU.

I/O Controller

iTE^® I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash

Bundled Software

Norton^® Internet Security (OEM version)
LAN bandwidth management software
* Service discontinued as a result of contract termination by the software provider.

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x User manual

Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

Bảo hành 3 năm
